6024K QTII COLD SHRINK TERMINATION KIT by 3M Electrical Products
Call For Price
- Part Number: 6024K
- UPC: 00054007499367
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

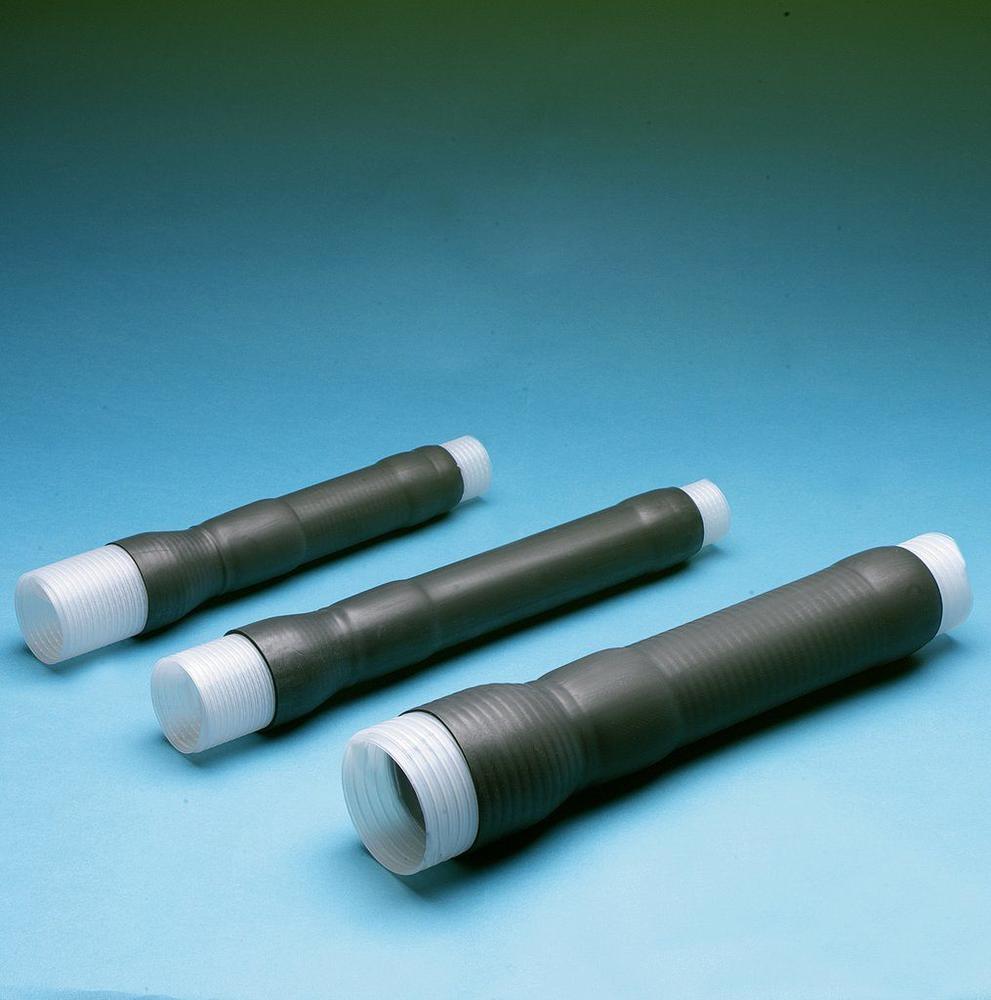

3M™ Cold Shrink QT II 6020K Series Termination Kit includes 3 non skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 15 to 25/28 kV.
Specifications
Details
Electrical Category:
Wire And Cable
Electrical Subcategory:
Cable Accessories
Electrical Subtype:
High Voltage Cable Termination Kit
Application:
Indoor
Brand Name:
3M
Cable Type:
Tape Shield; UniShield(R); Wire Shield
Conductor Size:
250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil
Country Of Origin:
USA
Lead Time:
28.000 DA
Length:
15.3000 IN
MsdsURL:
http://images.salsify.com/image/upload/s--bljLUeuF--/bojue6617bbh2yjh0bec.pdf
Number Of Terminals:
1
Order Minimum:
1.000 KT
Order Multiple:
1.000 KT
RoHS Compliance:
Under Review
Spec Sheet:
Standard:
IEEE
Type:
QT-II
UNSPSC:
26121648
Voltage Rating:
15 kV; 25/28 kV
Weight:
3.900 L
Manufactured By:
3M Electrical Products
