7693-S-4-INV-3G QT-III 3C TERM KIT by 3M Electrical Products
Call For Price
- Part Number: 7693-S-4-INV-3G
- UPC: 00054007436775
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview

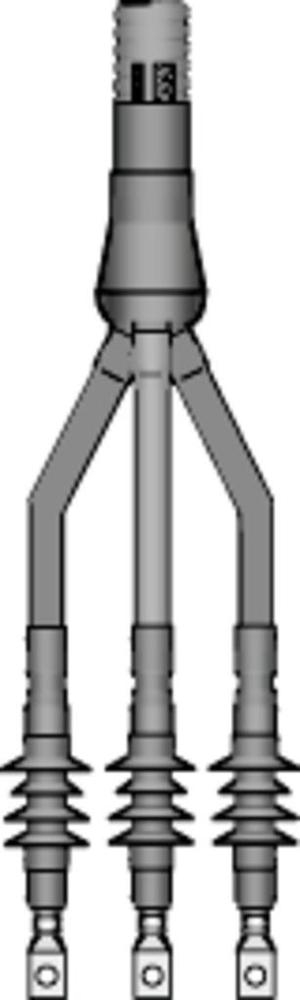

3M™ Cold Shrink QT III 7620 S & 7690 S Series Inverted Termination Kit includes 3 single conductor, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
Specifications
Details
Electrical Category:
Wire And Cable
Electrical Subcategory:
Cable Accessories
Electrical Subtype:
High Voltage Cable Termination Kit
Application:
Outdoor
Brand Name:
3M
Brochure:
Cable Type:
Tape Shield; UniShield(R); Wire Shield
Conductor Size:
1 AWG; 1/0 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil
Country Of Origin:
USA
Installation Link:
Lead Time:
21.000 DA
Length:
16.9600 IN
MsdsURL:
http://images.salsify.com/image/upload/s--frTXOIxl--/wbrwi053x1kecbnonsfv.pdf
Number Of Terminals:
3
Order Minimum:
1.000 KT
Order Multiple:
1.000 KT
RoHS Compliance:
Under Review
Spec Sheet:
Standard:
IEEE
Type:
QT-III
UNSPSC:
26121648
Voltage Rating:
15 kV; 25/28 kV; 5 kV; 8 kV
Weight:
12.600 L
Manufactured By:
3M Electrical Products
