QS2001B QS2000 BRANCH SPLICE KIT by 3M Electrical Products
Call For Price
- Part Number: QS2001B
- UPC: 00051128552544
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview

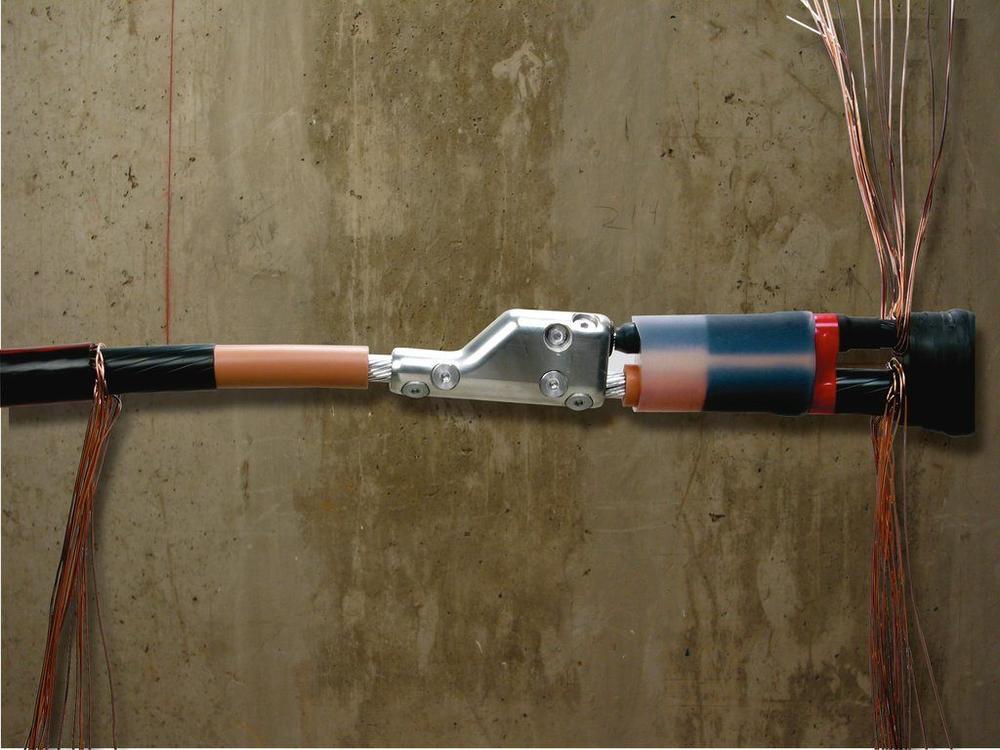

The 3M™ Cold Shrink Branch Splice QS-2001B molded rubber splice kit is designed to connect extruded dielectric power cables rated 15 kV. The basic kit handles the main and branch cable range from 350–500 kcmil. (See note below for cable between 2 AWG-250 kcmil.)
Specifications
Details
Electrical Category:
Wire And Cable
Electrical Subcategory:
Cable Accessories
Electrical Subtype:
High Voltage Cable Joining Kit
Brand Name:
3M
Cable Type:
Tape Shield; UniShield(R); Wire Shield
Connector:
Yes
Country Of Origin:
ITA
Installation Link:
Lead Time:
14.000 DA
Length:
11.6000 IN
MsdsURL:
http://images.salsify.com/image/upload/s--KNNayu3U--/ermnijsknntrb0yo1y9v.pdf
Order Minimum:
1.000 KT
Order Multiple:
1.000 KT
RoHS Compliance:
Under Review
Spec Sheet:
Tech Drawing Link:
Type:
Branch
UNSPSC:
26121649
Voltage Rating:
15 kV
Weight:
17.000 L
Manufactured By:
3M Electrical Products
