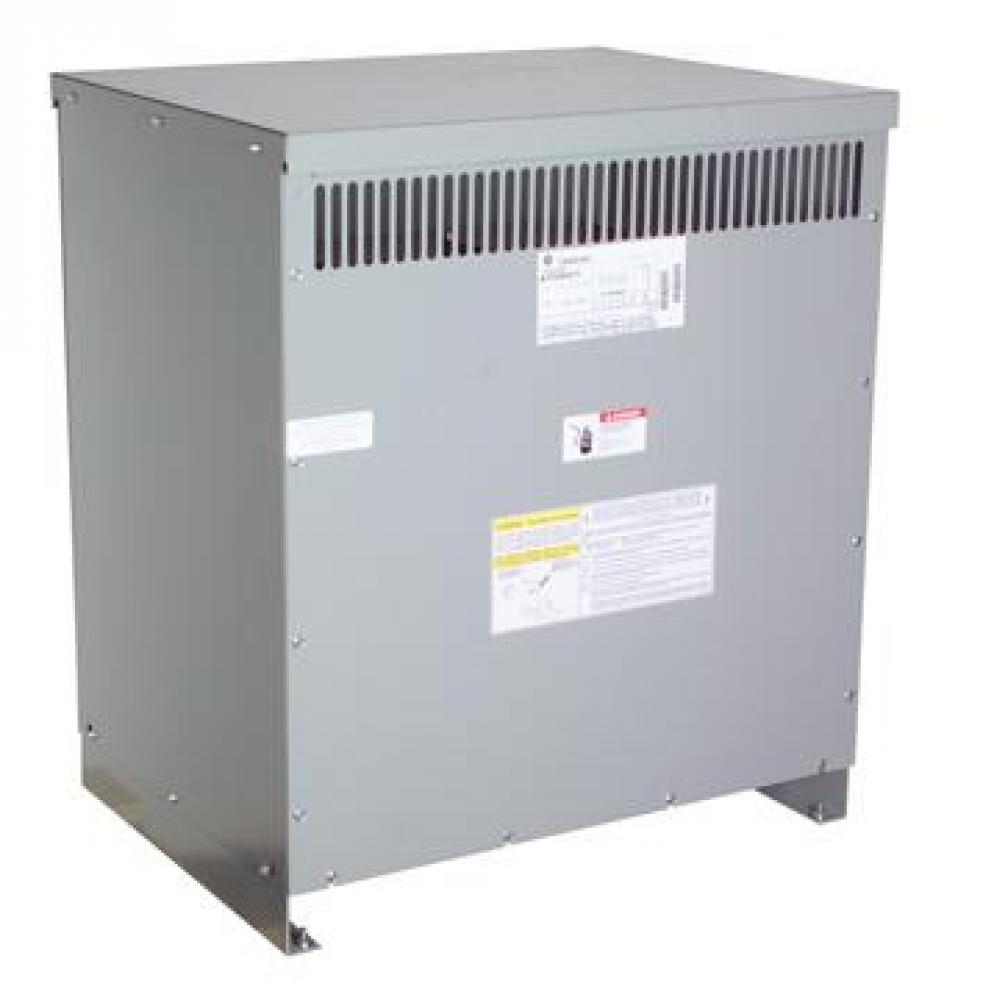

AL 1P 100KVA 240X480-120X240 150C D by ABB - Electrification
$
35,143
44
/ EA
/ 1 EA
- Part Number: 9T83B2675
- UPC: 00783173167120
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
ABB Type QL transformers meet DOE2016 efficiency standards. They are available with aluminum or copper windings and utilize a UL recognized 220?C insulation system.
-Quiet Performance
-Core and coil assemblies are mounted on rubber isolation pads to reduce noise
-Bolted coil terminations
-Single-piece front/back is easily removable for service
-NEMA 2 drip-proof enclosure is standard; weathershield kits are available for conversion to NEMA 3R outdoor configuration
-Qualified to the seismic requirements of IEEE-693-2005, IBC-2012, and CBC 2013
-Copper or aluminum windings
-Copper ground strap
-Robust packaging with top and side protection protects against shipping damage
-Accessible mounting flanges with front/back slotted mounting holes make installation easier
-100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise.
-Clear, comprehensive documentation and labeling
-Quiet Performance
-Core and coil assemblies are mounted on rubber isolation pads to reduce noise
-Bolted coil terminations
-Single-piece front/back is easily removable for service
-NEMA 2 drip-proof enclosure is standard; weathershield kits are available for conversion to NEMA 3R outdoor configuration
-Qualified to the seismic requirements of IEEE-693-2005, IBC-2012, and CBC 2013
-Copper or aluminum windings
-Copper ground strap
-Robust packaging with top and side protection protects against shipping damage
-Accessible mounting flanges with front/back slotted mounting holes make installation easier
-100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise.
-Clear, comprehensive documentation and labeling
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Transformers And Accessories
Electrical Subtype:
Distribution Power Transformers
Country Of Origin:
UKN
Efficiency:
NEMA TP 1
Frequency Rating:
60
KVA Rating:
100
Lead Time:
15.000 DW
Length:
32.0000 IN
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Primary Voltage:
240x480
RoHS Compliance:
Contact Manufacturer
Secondary Voltage:
120x240
Spec Sheet:
Special Features:
ABB Type QL transformers meet DOE2016 efficiency standards. They are available with aluminum or copper windings and utilize a UL recognized 220°C insulation system.
-Quiet Performance
-Core and coil assemblies are mounted on rubber isolation pad
-Quiet Performance
-Core and coil assemblies are mounted on rubber isolation pad
Standard:
No
Temperature Rating:
40
UNSPSC:
39121001
Weight:
955.000 L
Manufactured By:
ABB - Electrification
