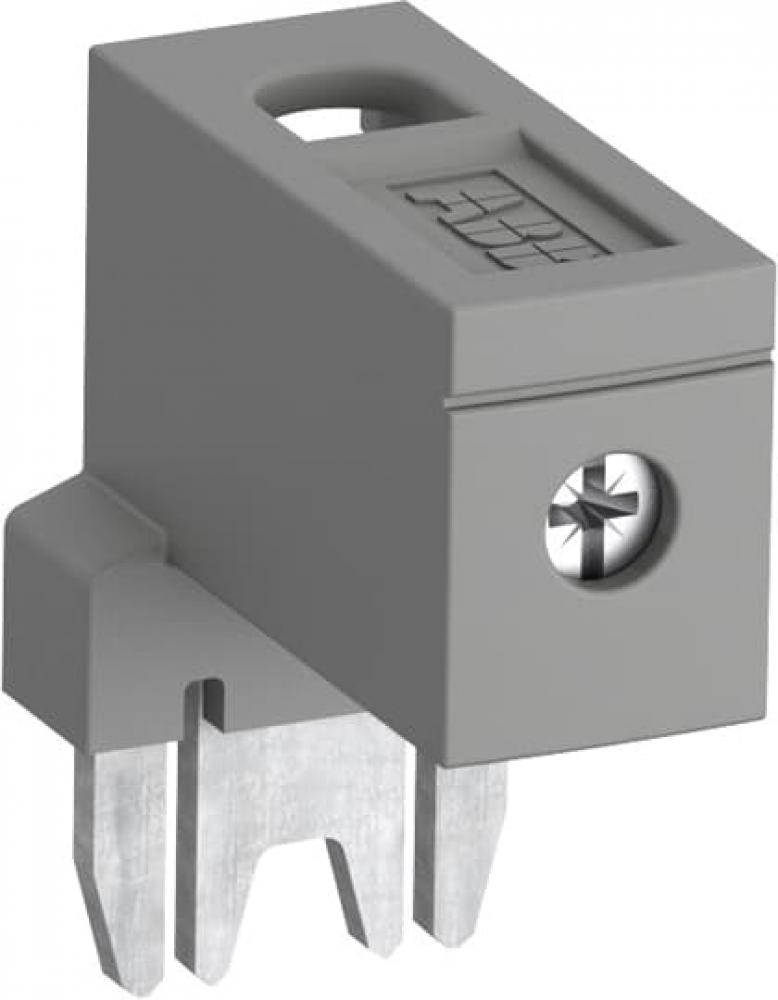

CONNECTING STRIP by ABB - Electrification

/ EA / 1 EA

Part Number: LF16-4
UPC: 03471523130890

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Parallel and series connection of 3-pole contactors:? To obtain a star point (3 parallel-connected poles)? To connect poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles: LP, LY, LH, LF, LG.The relevant cable cross-sectional area may limit the maximum permissible current. Consult information in table below? To connect poles in series and thus increase the DC voltage controlled by the poles: LP, LY (only LY16-4 and LY38-4 secable strips).

Specifications

Details

Electrical Category:

Electrical Distribution Equipment

Electrical Subcategory:

Terminals And Accessories

Electrical Subtype:

Terminal Strips

Application:

Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.

Brand Name:

ABB

Country Of Origin:

UKN

Lead Time:

17.000 DW

Length:

6.2990 IN

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Contact Manufacturer

Size:

82x110x108mm

Spec Sheet:

Spec Link

Special Features:

Parallel and series connection of 3-pole contactors:• To obtain a star point (3 parallel-connected poles)• To connect poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles: LP, LY, LH, LF,

Standard:

RoHs, CSA, cUL, CE, GOST

Type:

Contactors

UNSPSC:

39121407

Weight:

0.088 L

Manufactured By:

ABB - Electrification
