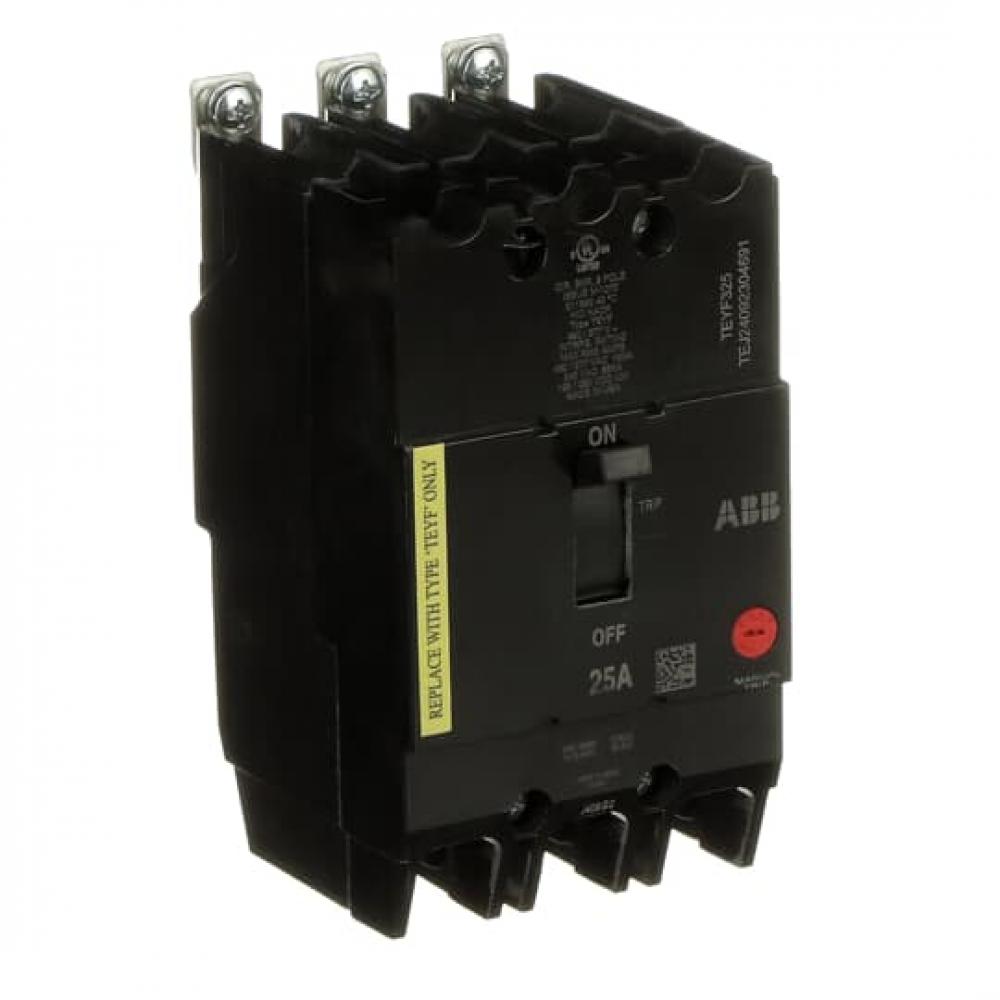

TEYF 3 POLE 25 AMP by ABB - Electrification
$
839
71
/ EA
/ 1 EA
- Part Number: TEYF325
- UPC: 00783164388497
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The TEyF is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480y/277 Vac systems. The bolt-on mounting base accessory makes the TEyF suitable for varied applications as a lug-lug breaker. All TEyF circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEyF breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. TEYF 3 POLE 25 AMP
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Breakers
Electrical Subtype:
General Circuit Breaker
Application:
Thermal Magnetic
Brand Name:
TEY / Q-Line (Bolt-On)
Connection:
#14-#10
Country Of Origin:
UKN
Frame:
TEYF
Interrupt Rating:
18kA@277 Vac / 65kA@120/240 Vac / 65kA@240 Vac / 18kA@480/277 Vac
Lead Time:
15.000 DW
Load Rating:
HACR
Number Of Poles:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
The TEyF is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480y/277 Vac systems. The bolt-on mounting base accessory makes the TEyF suitable for varied applications as a lug-lug breaker. All TEyF circuit breakers f
Standard:
E11592
Stock Type:
Shelf Stock
Sub Brand:
TEYF
Trip Range:
Non-Interchangeable
Trip Type:
LI
UNSPSC:
39121601
Weight:
2.145 L
Manufactured By:
ABB - Electrification
