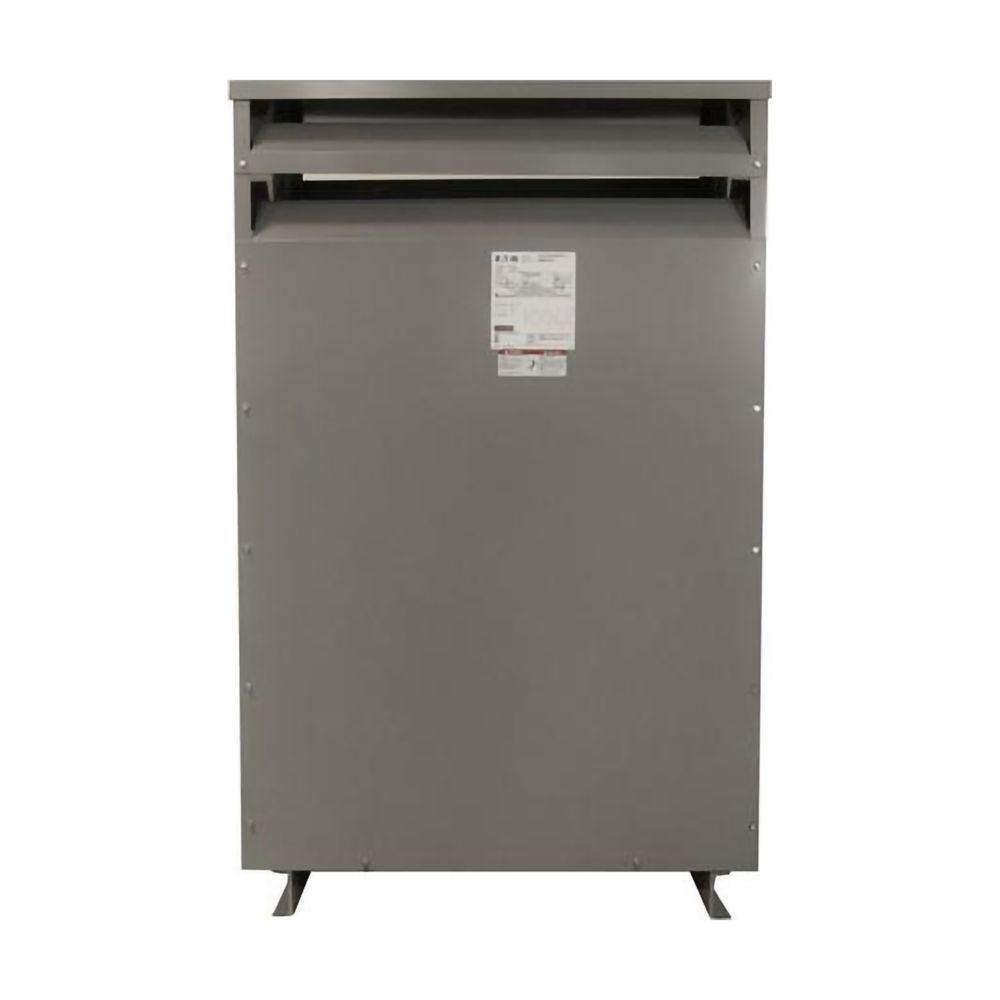

30KVA K13 XFMR 3PH 208V D-208Y/120V 115C by Eaton
Call For Price
- Part Number: N29M28F30A
- UPC: 00782114401996
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
K-Factor Non Linear Transformer, Ventilated, K-13, Three-phase, PV: 208V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 115°C, 30 kVA , Al windings , Elec. Shield, Frame: 912B, uses WS38
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Power Conditioning Equipment
Transformers And Accessories
Application:
Commercial / Institutional Buildings / Structures - Safety and Security Systems
Brand Name:
Eaton
Brochure:
Country Of Origin:
MX
Design:
K-13
Frequency Rating:
60 Hz
KVA Rating:
30 kVA
Lead Time:
30.000 DW
Number Of Phases:
Three-phase
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Primary Voltage:
208 V
RoHS Compliance:
Contact Manufacturer
Secondary Voltage:
208Y/120 V
Spec Sheet:
Special Features:
Electrostatically shielded
Standard:
UL Listed
Tap Size:
2 at +2.5% FCAN, 4 at -2.5% FCBN
Temperature Rating:
115 °C rise
Type:
Ventilated transformer
UNSPSC:
39121029
Video Clip:
Weight:
310.000 L
Manufactured By:
Eaton
