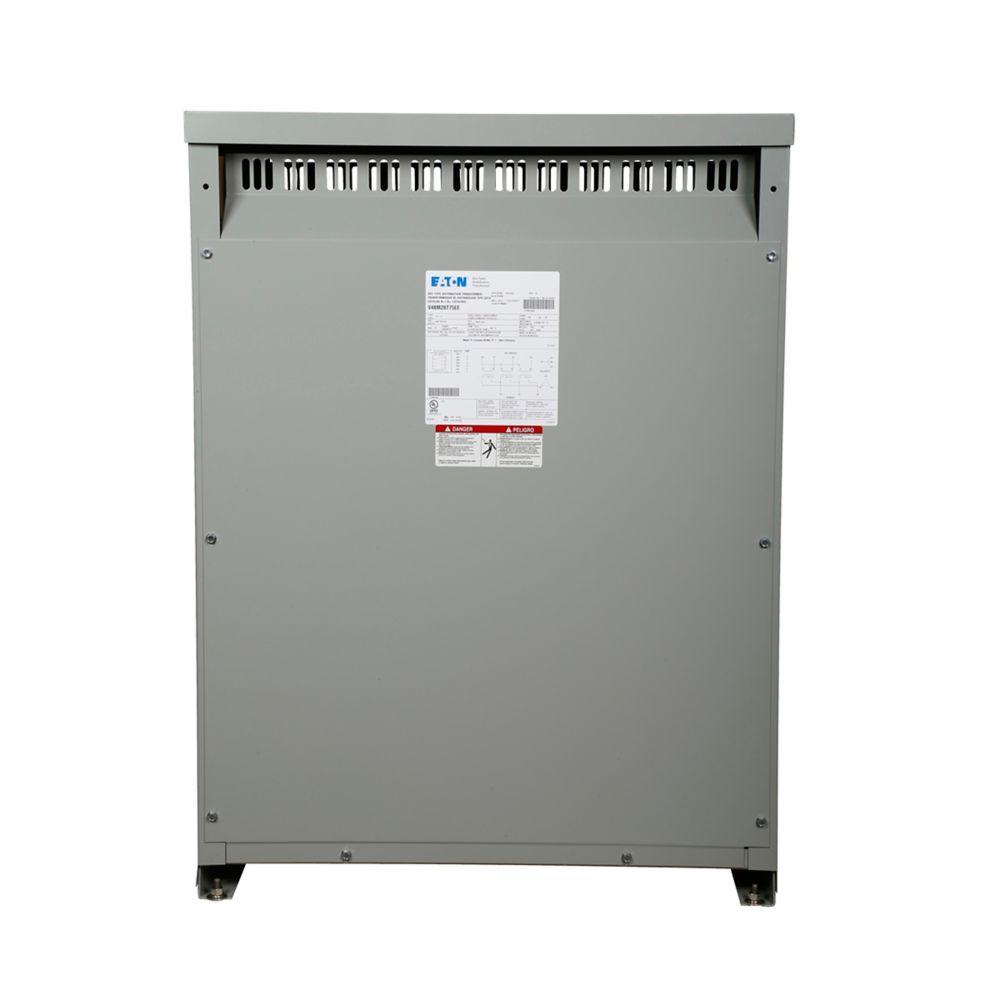

45 KVA K13 VENT'D TX 3PH 208-208Y/120 by Eaton
Call For Price
- Part Number: N29M28T45X
- UPC: 00786680071331
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
K-Factor nonlinear ventilated transformer K-13, Three-phase, PV: 208V, Taps: 2 at 0.025 FCAN, 4 at -0.025 FCBN, SV: 208Y/120V, 150°C, 45 kVA, Al windings , Elec. Shield, Frame: 914D
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Transformers And Accessories
Electrical Subtype:
Isolation Transformers
Application:
Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Brand Name:
Eaton
Brochure:
Country Of Origin:
MX
Design:
K-13
Frequency Rating:
50-60 Hz
KVA Rating:
45 kVA
Length:
22.0000 IN
Number Of Phases:
Three-phase
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Primary Voltage:
208 V
RoHS Compliance:
Contact Manufacturer
Secondary Voltage:
208Y/120 V
Spec Sheet:
Special Features:
Electrostatically shielded
Standard:
UL Listed
Tap Size:
2 at +2.5% FCAN, 4 at -2.5% FCBN
Temperature Rating:
150 °C rise
Type:
Ventilated transformer
UNSPSC:
39121029
Video Clip:
Weight:
523.000 L
