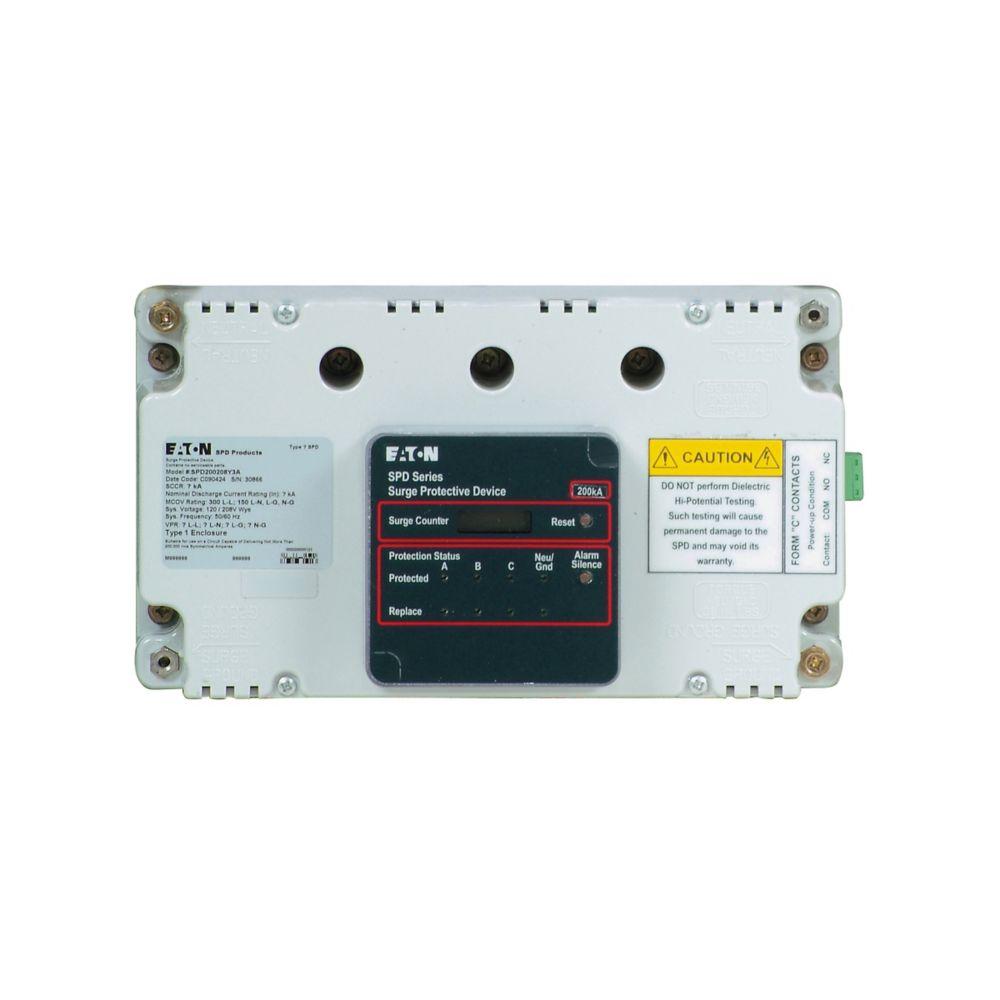

Eaton SPD series surge protection device by Eaton
Call For Price
- Part Number: SPD120220Y1A
- UPC: 00786685317533
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Surge Protection Device, SPD series, For direct bus mounted panel boards (PRL1a, 2a, 3a, 3E), 120 kAIC, 127/220V wye (4W+G), Basic feature package, Internal integrated mount, 150 L-N, 150 L-G, 150 N-G, 300 L-L operating voltage
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Surge And Power Protection
Circuit Protection Devices And Accessories
Application:
Water and Wastewater Systems - Water/Wastewater Systems - Aftermarket|Other IT and Datacom - Other IT & Datacom - Aftermarket|Datacenters - Data Centers - Aftermarket|Generation - Renewable Energy - Generation - Renewable Energy - Aftermarket|Commercial /
Brand Name:
Eaton
Country Of Origin:
US
Frequency Rating:
50/60 Hz
Installation Link:
Lead Time:
10.000 DW
Operating Temperature:
-40 to 50 °C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Short Circuit Rating:
200 kA
Spec Sheet:
Special Features:
Meets or exceeds the requirements specified in IBC ®2006, CBC2007, and UBC®Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest butt
Standard:
UL 1449 ,UL Listed
Type:
Surge protection device
UNSPSC:
39121610
Voltage Rating:
127/220 Wye (4W+G)
Weight:
4.000 L
Manufactured By:
Eaton
