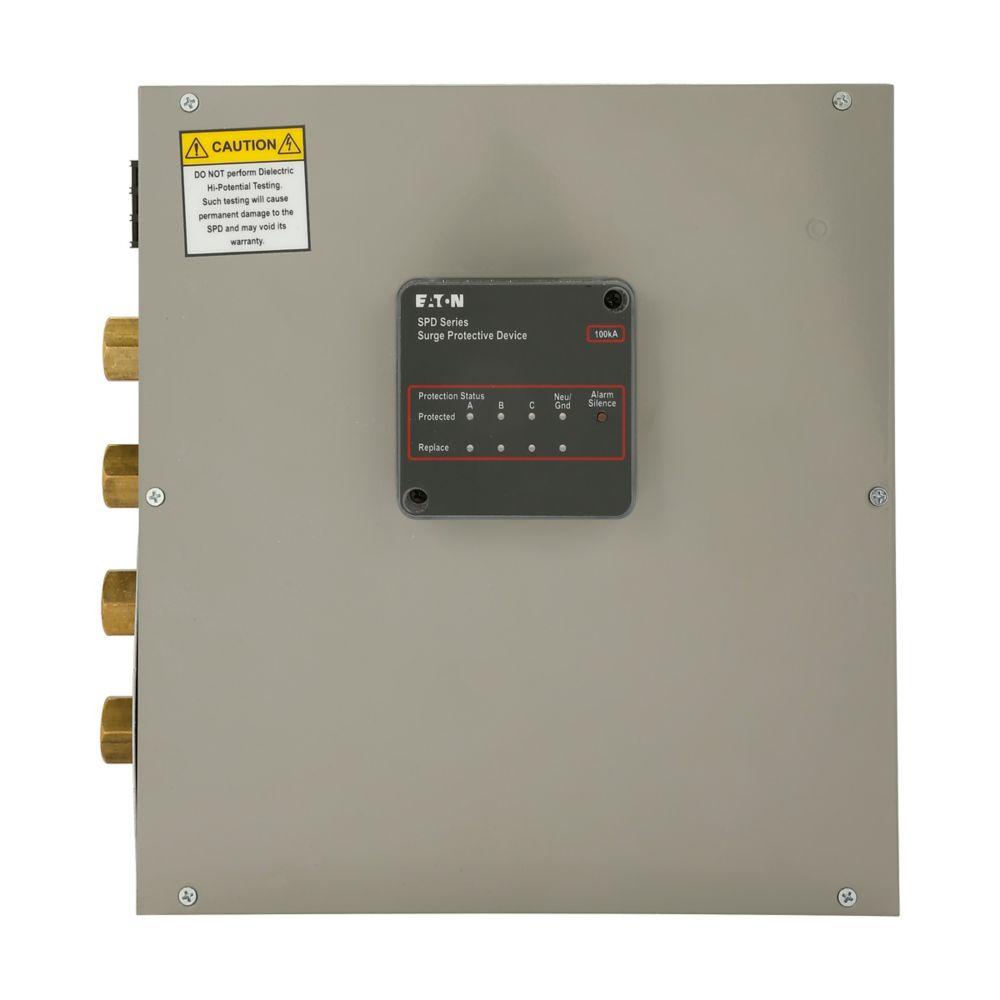

Surge Protection Device by Eaton
Call For Price
- Part Number: SPD100208Y1C
- UPC: 00786685321769
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Eaton Surge Protection Device, SPD Series, Basic feature package, 208Y/120V (4W+G), 100 kA per phase, Switchboard, busways, and panel boards (PRL1a, 2a, 3a, 3e, 4), Internal integrated
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Surge And Power Protection
Circuit Protection Devices And Accessories
Application:
Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other|Generation - Renewable Energy - Generation - Renewable Energy - Aftermarket|Datacenters - Data Centers - Aftermarket|Other IT and Datacom - Other Infrastructures|Other IT and Datacom
Brand Name:
Eaton
Country Of Origin:
US
Frequency Rating:
50/60 Hz
Installation Link:
Lead Time:
15.000 DW
Length:
13.0000 IN
Operating Temperature:
-40 to 50 °C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Short Circuit Rating:
200 kA
Spec Sheet:
Special Features:
Meets or exceeds the requirements specified in IBC ®2006, CBC2007, and UBC®Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest butt
Standard:
UL 1449 ,UL Listed
Type:
Surge protection device
UNSPSC:
39121610
Voltage Rating:
120/208 wye (4W+G)
Weight:
3.500 L
Manufactured By:
Eaton
