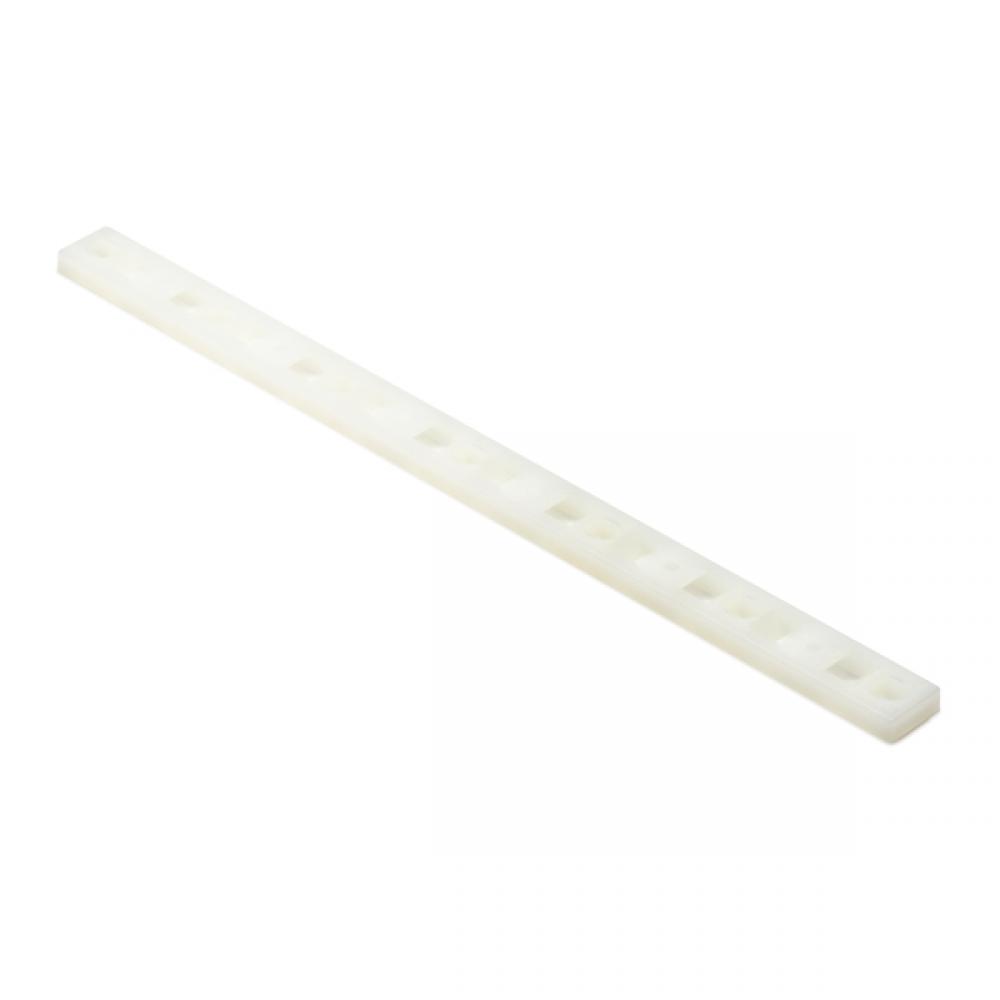

MSMP-5 NATURAL MOUNTING PLATE by HellermannTyton
Call For Price
- Part Number: MSMP5/109C2
- UPC: 04031026191102
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
HellermannTyton mounting plates allow multiple cable to be run in parallel. The mount is secured with two screws and the cables are attached to the plate by using a cable tie through any of the available slots.
Specifications
Details
Electrical Category:
Fittings and Hardware
Electrical Subcategory:
Electrical Hardware And Supplies
Application:
Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.
Brand Name:
HELLERMANNTYTON
Color:
Natural (NA)
Country Of Origin:
US
Material:
Polyamide 6.6 (PA66)
Operating Temperature:
-40°F to +185°F (-40°C to +85°C)
Order Minimum:
100.000 EA
Order Multiple:
100.000 EA
RoHS Compliance:
Yes
Spec Sheet:
Special Features:
Mounting Plate, 8.05" Length, .62" Width, .2" Hole Dia., .3" Max. Tie Width, PA66, Natural, 100/pkg
Sub Brand:
Cable Tie Mounts
Tech Drawing Link:
Type:
MSMP5/10
UNSPSC:
39121717
Manufactured By:
HellermannTyton
