HEATSHRNK,HVYWL,.400 ID X 9 IN by Ideal Industries
Call For Price
- Part Number: 46-344
- UPC: 00783250463442
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (7)
Product Overview

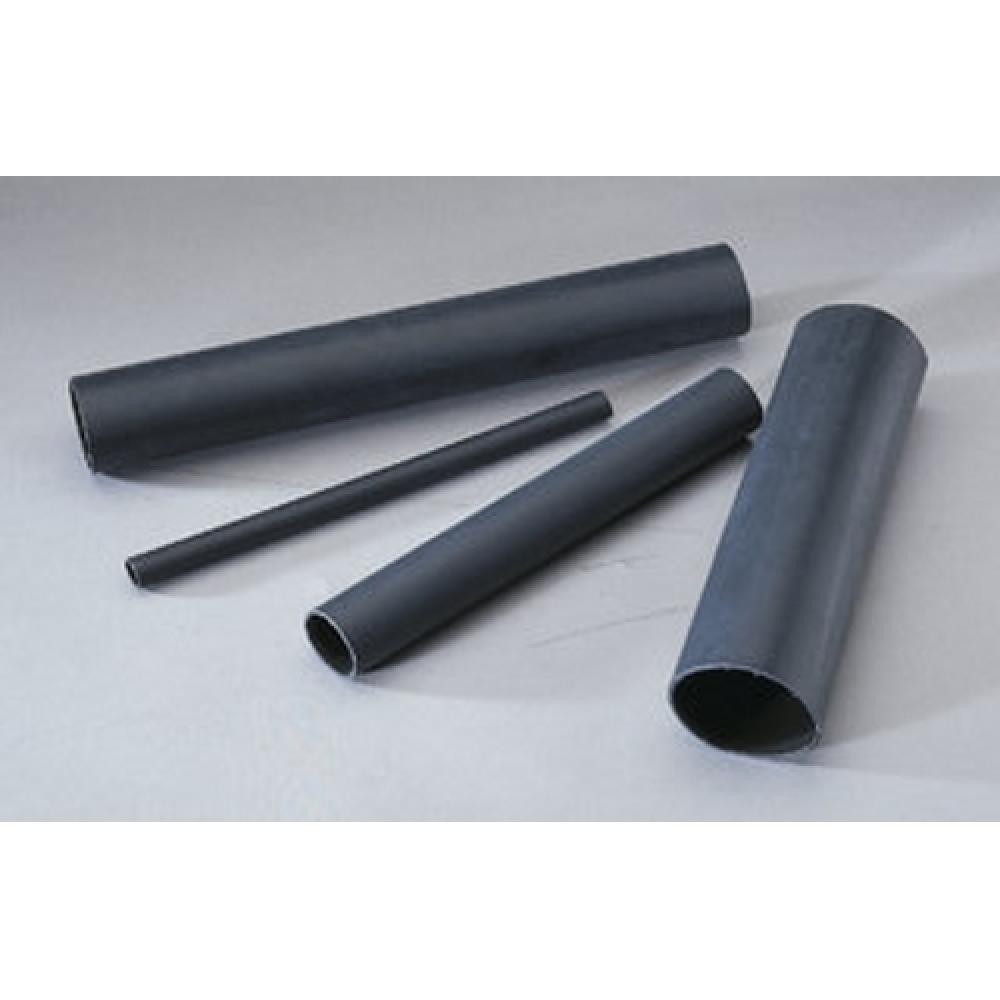

IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Heavy-Wall Heat Shrink Tubing, Shrink Ratio: 3:1, Thickness: 060 IN, Length: 9 IN, Dielectric Strength: 500 V/MIL (20 KV MINT), Volume Resistivity: 1013 OHM -CM MIN, Continuous Operating Temperature: -55 To 110 DEG C, Minimum Shrink Temperature: 120 - 250 DEG C (200 DEG C Recommended), Low Temperature Flexibility: -55 DEG C, Heat Shock: No Cracks, Flowing Or Dripping (4 HR At 225 DEG C), Water Absorption: 0.5 PCT, Heat Aging: 500 PCT (168 HR At 175 DEG C Tensile Strength Elongation), Cable Range: 8 - 6 AWG, Nominal Recoveredi.d. (max.): 0.150 IN, Expanded I.d. (min.): 0.400, Copper Corrosion: Non-Corrosive, Ultimate Elongation: 600 PCT Min., Model: TS-46-400
Specifications
Details
Electrical Category:
Fittings and Hardware
Electrical Subcategory:
Electrical Hardware And Supplies
Brand Name:
IDEAL
Compare Number:
100
Continuous Operating Temperature:
-55 To 110
Country Of Origin:
USA
Dielectric Strength:
500 V/MIL (20 KV MINT)
Heat Aging:
500 PCT (168 HR At 175 DEG C Tensile Strength Elongation)
Heat Shock:
No Cracks, Flowing Or Dripping (4 HR At 225 DEG C)
Length:
9
Low Temperature Flexibility:
-55
Minimum Shrink Temperature:
120 - 250 DEG C (200 DEG C Recommended)
Order Minimum:
10.000 EA
Order Multiple:
10.000 EA
RoHS Compliance:
Yes
Rohs Link:
Shrink Ratio:
3:1
Special Features:
Features: TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio; Adhesive liner provides complete insulation and protection to electrical splices in above-grade, underground or underwater applications; Maximum flame retardancy; Meets UL 4
Standard:
CSA, UL Listed,RoHS
Stock Type:
Shelf Stock
Sub Brand:
Thermo-Shrink®
Thickness:
060
Type:
Heavy-Wall Heat Shrink Tubing
UNSPSC:
39121723
Volume Resistivity:
1013 OHM -CM MIN
Water Absorption:
0.5
Weight:
.380 L
