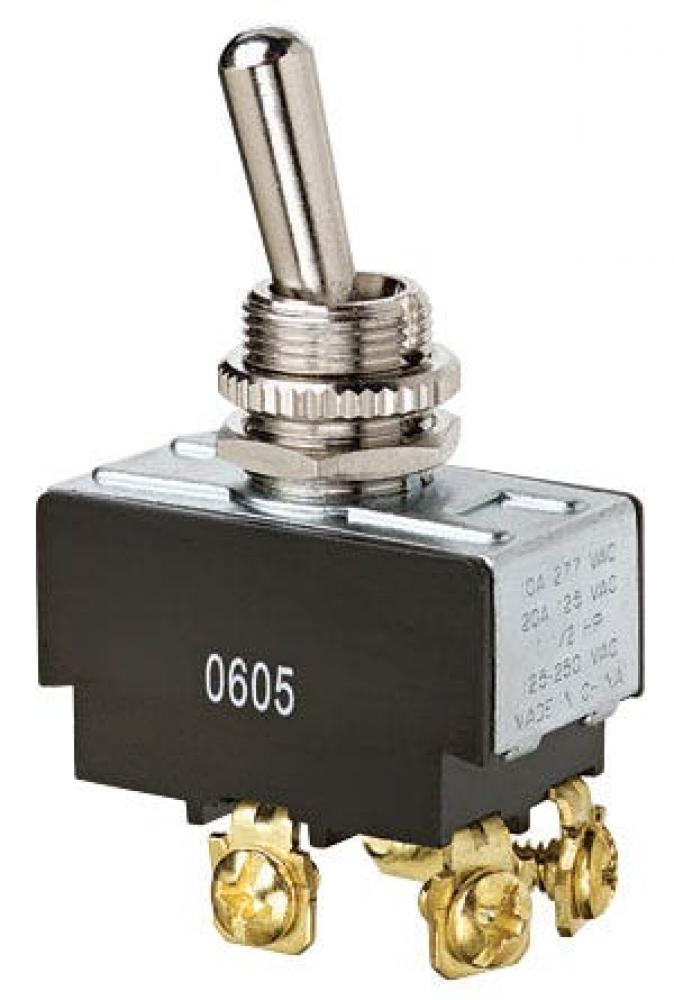

SWITCH,TOGGLE,DPST,O-F,SCREW by Ideal Industries

Call For Price

Part Number: 774014
UPC: 00781789740140

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

IDEAL, Toggle Switch, Heavy-Duty, On-OFF, Voltage Rating: 125, 227 VAC, Number Of Poles: 2, Amperage Rating: 20, 10 AMP, Action: DPST, Connection: Screw, 4 Terminals, Actuator: Toggle, Contact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating, Size: 1.300 IN Length X 0.760 IN Width X 0.800 IN Height, Mounting: 1/2 IN Hole Diameter, Operating Cycles: 100000 Cycles Mechanical Life, Operating Temperature: 32 To 185 DEG F, Dielectric Strength: 1500 V, Finish: Solid Brass/Nickel-Plated Bushings, Hp Rating: 1-1/2 HP At 125 To 250 VAC

Specifications

Details

Electrical Category:

Control And Automation

Electrical Subcategory:

Switches

Action:

DPST

Actuator:

Toggle

Amperage Rating:

20, 10

Application:

For Power Tool And Motor Control Switch Applications

Brand Name:

IDEAL

Connection:

Screw, 4 Terminals

Contact Rating:

Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating

Country Of Origin:

CHN

Mounting:

1/2 IN Hole Diameter

Number Of Poles:

Operating Cycles:

100000 Cycles Mechanical Life

Operating Temperature:

32 To 185

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Yes

Rohs Link:

Material Composition Declaration Link

Size:

1.300 IN Length X 0.760 IN Width X 0.800 IN Height

Special Features:

Features: Great For Power Tool And Motor Control Switch Applications; Rugged Long-Wearing Solid Brass/Nickel-Plated Bushings; 1/2 IN Diameter Mounting Hole; Dielectric Strength: 1500 V; Mechanical Life: 100000 Cycles; Operating Temperature: 32 DEG F To 185

Standard:

CSA, RU Listed, RoHS

Stock Type:

Shelf Stock

Type:

Heavy-Duty, On-OFF

UNSPSC:

39122211

Voltage Rating:

125, 227

Weight:

.100 L

Manufactured By:

Ideal Industries
