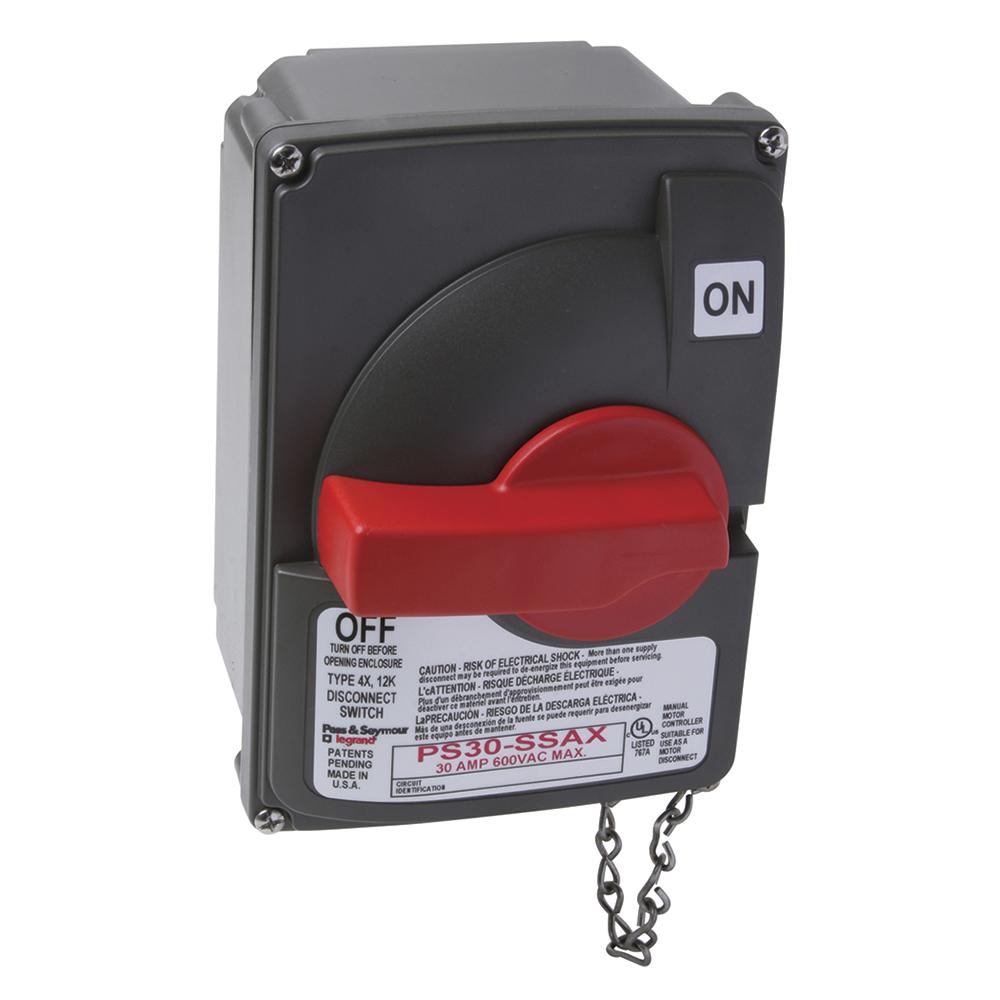

30A 600VAC N/F SAFETY SWITCH W/AUX. by Legrand-Pass & Seymour
Call For Price
- Part Number: PS30SSAX
- UPC: 00785007150032
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Non-Fusible Safety Switch with Auxillary Contact. 30 amp, 600 vac.
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
Motor Disconnect Switch
Actuator:
Switch Handle
Amperage Rating:
30
Application:
Industrial
Brand Name:
Legrand-Pass & Seymour
Brochure:
Connection:
Hard Wired
Contact Configuration:
1 N.O. & 1 N.C.
Contact Rating:
10A @ 600VAC
Country Of Origin:
US
Enclosure:
NEMA Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt); IP67 Suitability
Environmental Conditions:
Moisture Resistance: Per UL50, Section 35, NEMA Enclosure Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt), and IP67 suitability; Flammability: UL94 5VA and VO Classification; UV Resistance: All enclosure materials are UV stable
Frequency Rating:
60
Installation Link:
Insulation:
Complies with NEMA 4X
Lead Time:
5.000 DW
Material:
Valox 357®
Mounting:
External adjustable feet with five (5) positions. Can be mounted directly to channel or strut (no washers required).
Number Of Poles:
4
Operating Cycles:
Mechanical: 15,000 Cycles; Electrical: 10,000 Cycles
Operating Temperature:
Maximum continuous: +60C; Minimum continuous: -50C without impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
5.75 L x 4.88 W x 9.69 H
Spec Sheet:
Special Features:
Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage. Nonconductive, watertight, corrosion-, heat-, and impact-resistant Valox® enclosure ensures NEMA 4X and 12 ratings and withstands t
Standard:
UL, CSA
Stock Type:
Shelf Stock
Sub Brand:
Pass & Seymour
Type:
Non-Fusible Safety Switch with Auxiliary Contact
UNSPSC:
39122205
Voltage Rating:
600
Warranty Link:
Weight:
2.300 L
Manufactured By:
Legrand-Pass & Seymour
