COMBO SW 1P 15A120V PILOT LT 1/25 GRD BN by Legrand-Pass & Seymour
Call For Price
- Part Number: 692G
- UPC: 00785007006087
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

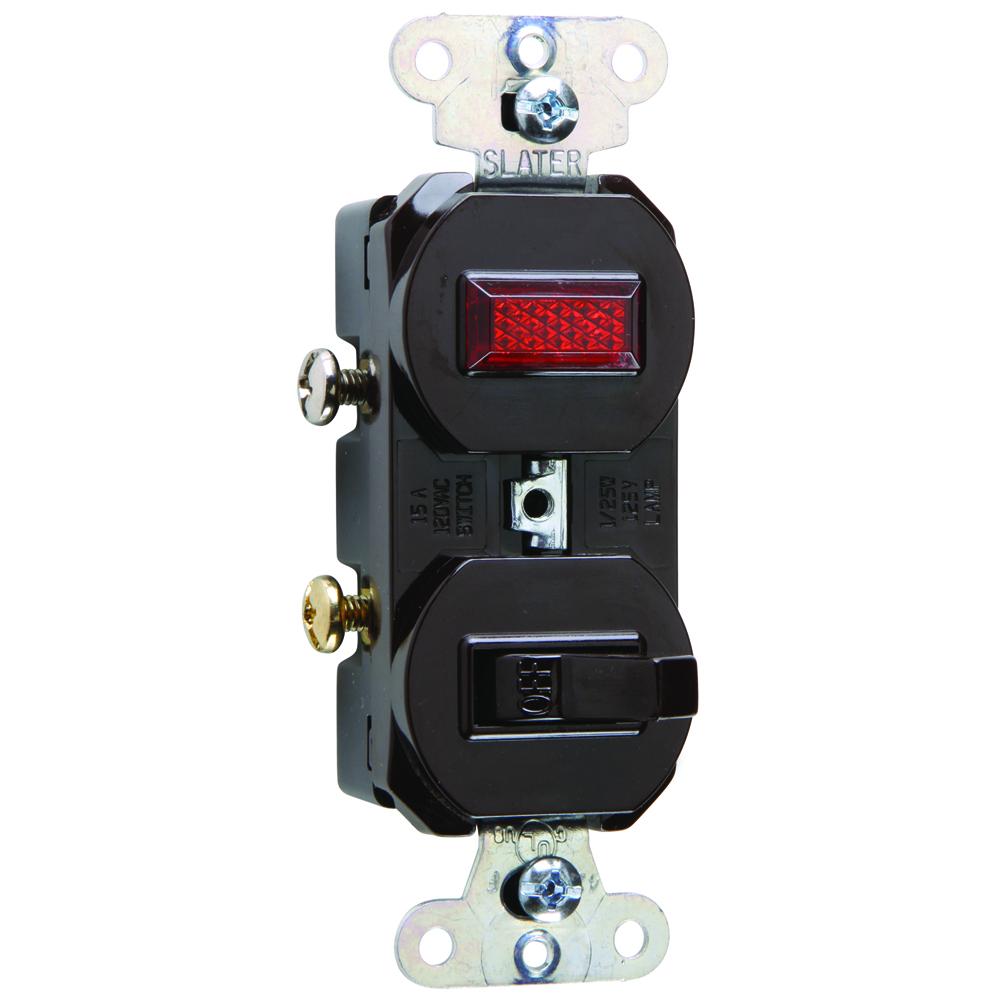

Single Pole, Single Pilot Light, Combination Switch, 15 amps, 120 volts, Brown.
Specifications
Details
Category:
Lighting Controls
Action:
SP & Pilot Light
Actuator:
Toggle
Amperage Rating:
15
Application:
Residential/Commercial
Brand Name:
Legrand-Pass & Seymour
Brochure:
Compare Number:
100
Connection:
Side wire
Contact Configuration:
N-O
Contact Rating:
15 Amp, 120/125 VAC
Country Of Origin:
MX
Environmental Conditions:
Flammability: UL94 V2
Installation Link:
Lead Time:
10.000 DW
Mounting:
Wall
Number Of Poles:
1
Operating Cycles:
30000
Operating Temperature:
Maximum continuous +60°C, minimum -30°C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1.32 L x 0.94 W x 4.06 H
Spec Sheet:
Special Features:
Easily accessible break-off for separate or common feed. Long-life red neon lamp in pilot light rated 1/25 Watt, 125V. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements.
Standard:
UL20
Stock Type:
Shelf Stock
Sub Brand:
Pass & Seymour
Type:
Combination Single Pole Switch & Pilot Light
UNSPSC:
39122232
Voltage Rating:
120/125
Warranty Link:
Wattage:
Pilot Light: 1/25
Weight:
.200 L
Manufactured By:
Legrand-Pass & Seymour
