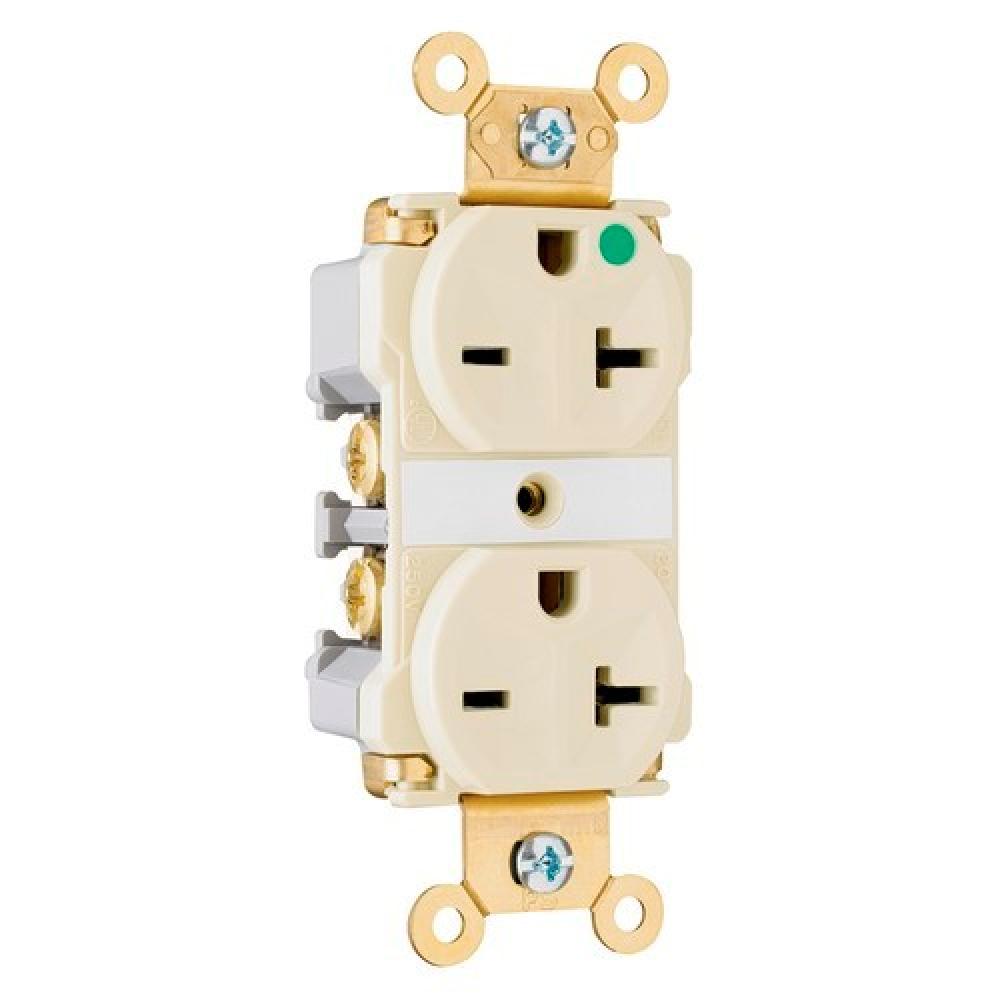

EXTRA HEAVY DUTY HOSPITAL GRD RECEPT LA by Legrand-Pass & Seymour
Call For Price
- Part Number: 8800LA
- UPC: 00785007156126
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Extra Heavy-Duty Hospital Grade Duplex Receptacle Back and, Side Wire 20amp 250volt Light Almond
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Commercial
Brand Name:
Legrand-Pass & Seymour
Color:
Light Almond
Connection:
Back and side wire
Country Of Origin:
MX
Dielectric Strength:
Withstands 2000V minimum
Environmental Conditions:
Flammability: UL94 V2 and UL94-5 VA
Lead Time:
5.000 DW
Material:
Nylon
Mounting:
Wall
NEMA Rating:
6-20R
Number Of Poles:
2
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1.625 L x .900 W x 3.281 H
Spec Sheet:
Special Features:
One-piece nickel-plated brass mounting strap with integral ground. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. Exclusive patented feature, circu
Standard:
cULus UL498, CSA C22.2 No. 42
Sub Brand:
Pass & Seymour
Temperature Rating:
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Type:
Hospital Grade Receptacle, Extra Heavy-Duty
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Wattage:
Electrical power is expressed in Amps and Volts.
Weight:
.245 L
Wire Size:
#14 - #10
Manufactured By:
Legrand-Pass & Seymour
