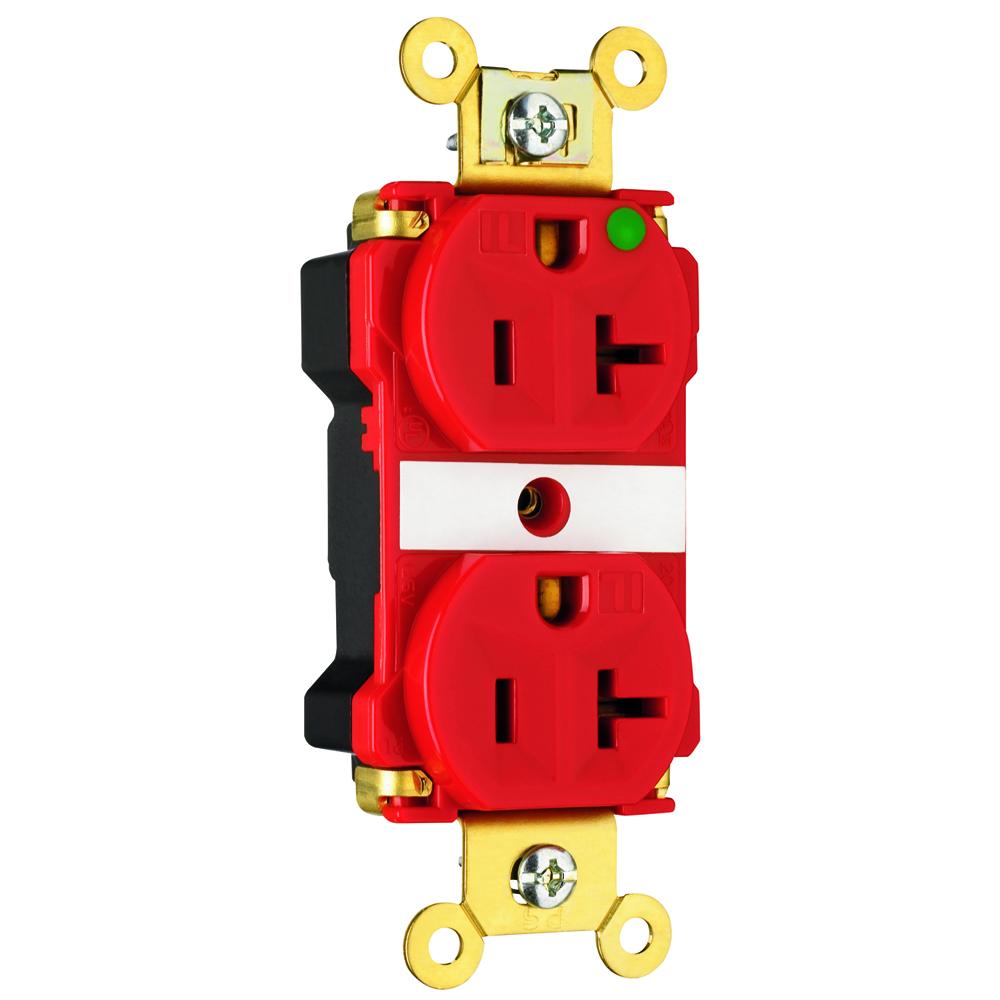

HG ILLUM EHD DUP RECEPT 20A/125V RED by Legrand-Pass & Seymour
Call For Price
- Part Number: PT8300ILRED
- UPC: 00785007238570
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
PlugTail Extra Heavy-Duty Hospital Grade Illuminated Duplex Receptacle 20amp 125volt Red
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Commercial
Brand Name:
Legrand-Pass & Seymour
Brochure:
Color:
Red
Country Of Origin:
MX
Dielectric Strength:
Withstands 2000V minimum
Environmental Conditions:
Flammability: UL94 V2
Installation Link:
Lead Time:
10.000 DW
Material:
Nylon
Mounting:
Wall
NEMA Rating:
5-20R
Number Of Poles:
2
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1.625 L x .866 W x 3.281 H
Spec Sheet:
Special Features:
Molded-in "IL" markings on face of product. Illuminated face indicates power to receptacle and makes it easy to identify receptacle in dark applications. Exclusive patented feature, circuit label on face allows permanent circuit identification. .03
Standard:
cULus UL498
Stock Type:
Shelf Stock
Sub Brand:
Pass & Seymour
Temperature Rating:
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Type:
PlugTail™ Hospital Grade Receptacle, Extra Heavy-Duty, LED Illuminated
UNSPSC:
39121406
Video Clip:
Voltage Rating:
125
Warranty Link:
Wattage:
Electrical power is expressed in Amps and Volts.
Weight:
.219 L
Wire Size:
PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Manufactured By:
Legrand-Pass & Seymour
