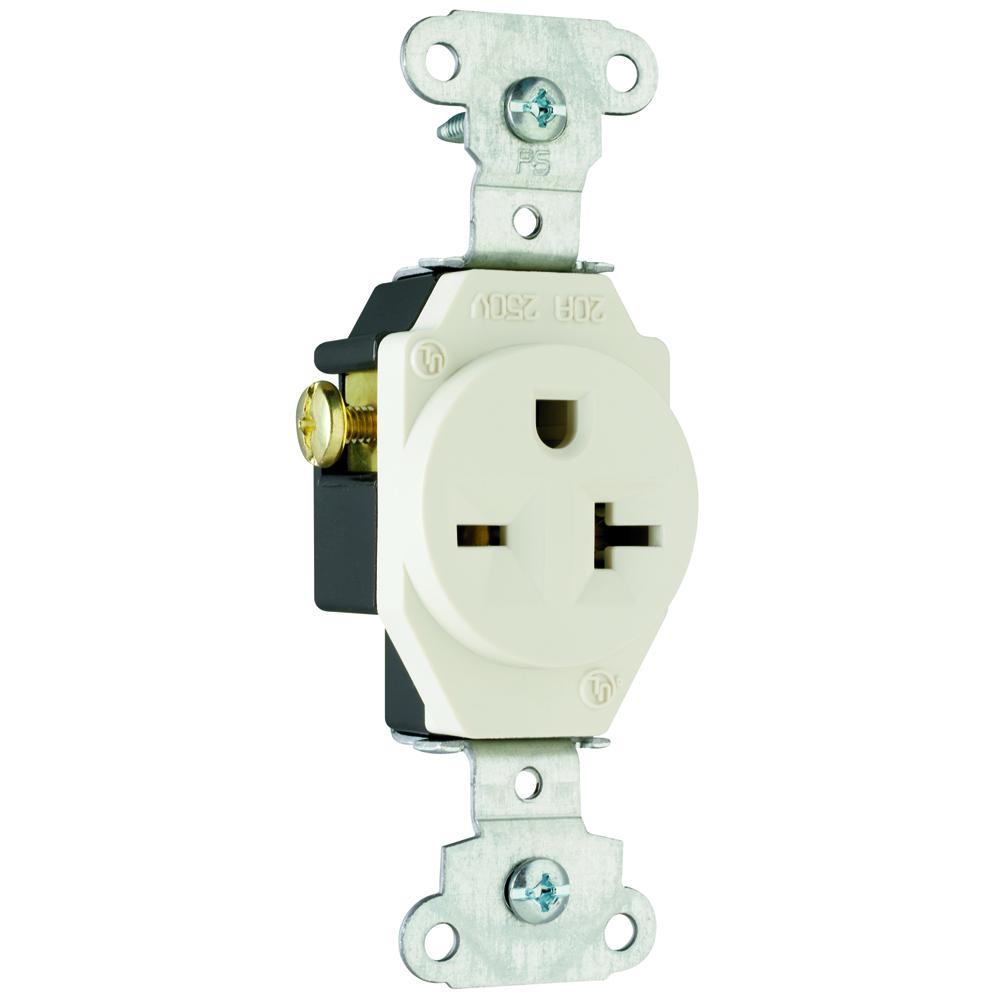

RECEPT SINGLE 20A 250V SIDE-WIRE LA by Legrand-Pass & Seymour
Call For Price
- Part Number: 5851LA
- UPC: 00785007585131
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Heavy-Duty Spec Grade Single Receptacle, Side Wire 20amp 250volt, Light Almond
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Commercial
Brand Name:
Legrand-Pass & Seymour
Brochure:
Color:
Light Almond
Connection:
Back and side wire
Country Of Origin:
MX
Dielectric Strength:
Withstands 2000V minimum
Environmental Conditions:
Flammability: UL94 V2
Installation Link:
Lead Time:
5.000 DW
Material:
Nylon
Mounting:
Wall
NEMA Rating:
6-20R
Number Of Poles:
2
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1.32 L x 1.08 W x 3.68 H
Spec Sheet:
Special Features:
Auto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. I
Standard:
UL498, CSA C22.2 No. 42
Stock Type:
Shelf Stock
Sub Brand:
Pass & Seymour
Temperature Rating:
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Type:
Spec Grade Single Receptacle
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Wattage:
Electrical power is expressed in Amps and Volts.
Weight:
.160 L
Wire Size:
#14 - #10
Manufactured By:
Legrand-Pass & Seymour
