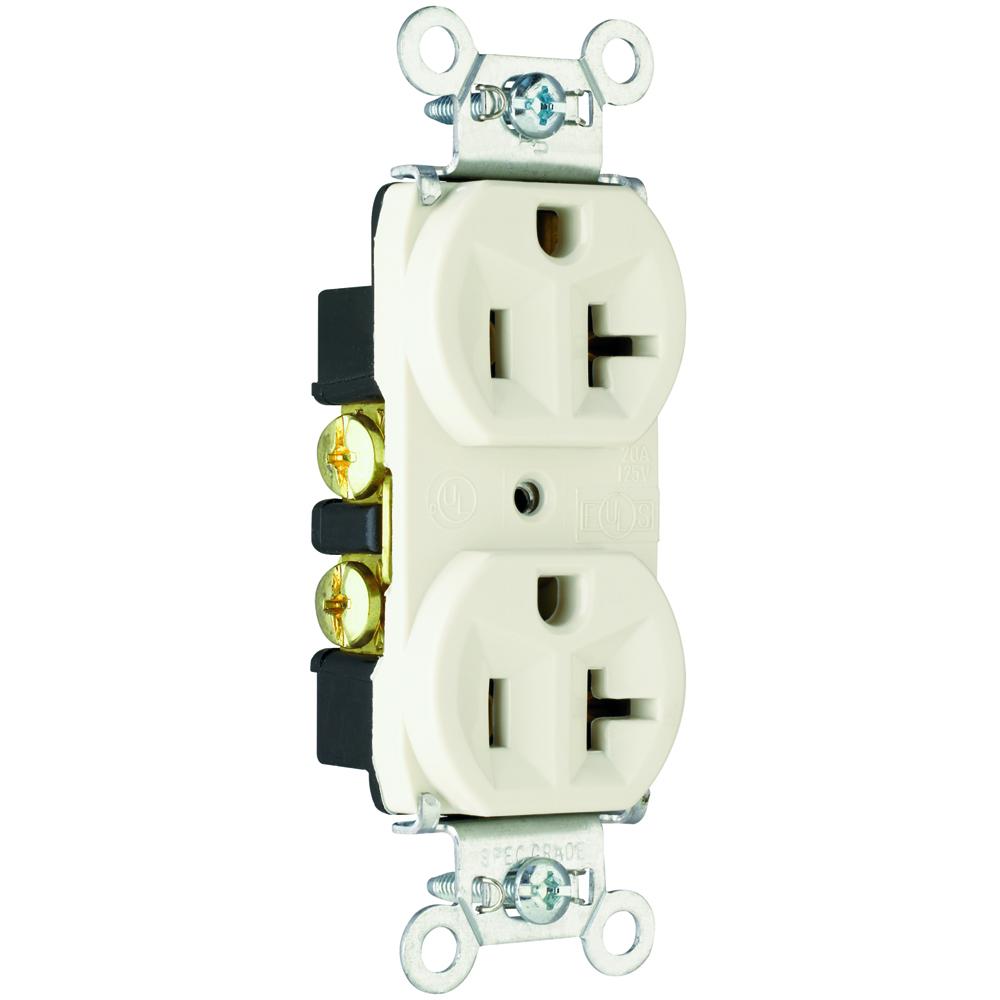

RECP DUP 20A 125V S+B WIRE LA by Legrand-Pass & Seymour
Call For Price
- Part Number: 5362LA
- UPC: 00785007194395
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Hard Use Spec Grade Duplex Receptacle Back and, Side Wire 20amp 125volt Light Almond
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Commercial
Brand Name:
Legrand-Pass & Seymour
Brochure:
Color:
Light Almond
Connection:
Back and side wire
Country Of Origin:
MX
Dielectric Strength:
Withstands 2000V minimum
Environmental Conditions:
Flammability: UL94 V2
Installation Link:
Lead Time:
10.000 DW
Material:
Nylon
Mounting:
Wall
NEMA Rating:
5-20R
Number Of Poles:
2
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1.322 L x .780 W x 3.281 H
Spec Sheet:
Special Features:
Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting
Standard:
UL498, CSA C22.2 No. 42
Stock Type:
Shelf Stock
Sub Brand:
Pass & Seymour
Temperature Rating:
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Type:
Spec Grade Receptacle, Hard Use
UNSPSC:
39121406
Video Clip:
Voltage Rating:
125
Warranty Link:
Wattage:
Electrical power is expressed in Amps and Volts.
Weight:
.233 L
Wire Size:
#14 - #10
Manufactured By:
Legrand-Pass & Seymour
