20A 277V CR RECEPTACLE by Leviton
Call For Price
- Part Number: 27CM-30
- UPC: 00078477108208
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

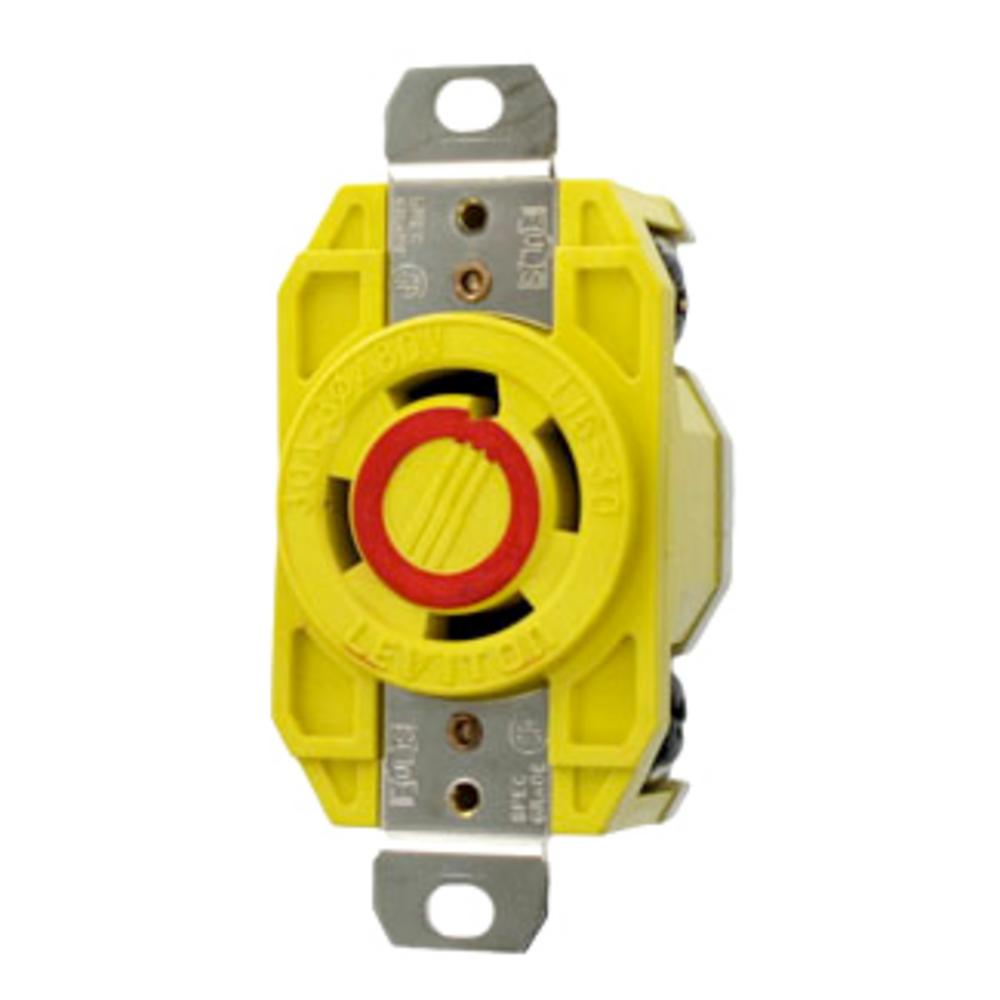

30A, 480V 3-Phase, NEMA L16-30R, 3P, 4W, Flush Mounting Locking Receptacle, Grounding, Corrosion Resistant, V-0-MAX, Yellow
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
30
Application:
Commercial
Brand Name:
LEVITON
Color:
Yellow
Connection:
Back Wired;Side Wired
Country Of Origin:
MX
Dielectric Strength:
2000 (Min.)
Environmental Conditions:
Flammability (Rated V-0 Per UL94)
Material:
PBT
Mounting:
Box
MsdsURL:
https://www.ideadigitalcontent.com/files/10962/MSDS.pdf
NEMA Rating:
L17-30R;L16-30R
Number Of Poles:
3
Number Of Wires:
4
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
RoHS Compliance:
Contact Manufacturer
Size:
3.63 H x 1.69 W x 1.31 D
Spec Sheet:
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Stock Type:
Shelf Stock
Temperature Rating:
-40 to +60
Type:
Flush Mount Locking Receptacle
UNSPSC:
39121406
Voltage Rating:
480;600
Weight:
.320 L
Wire Size:
14-8
Manufactured By:
Leviton
