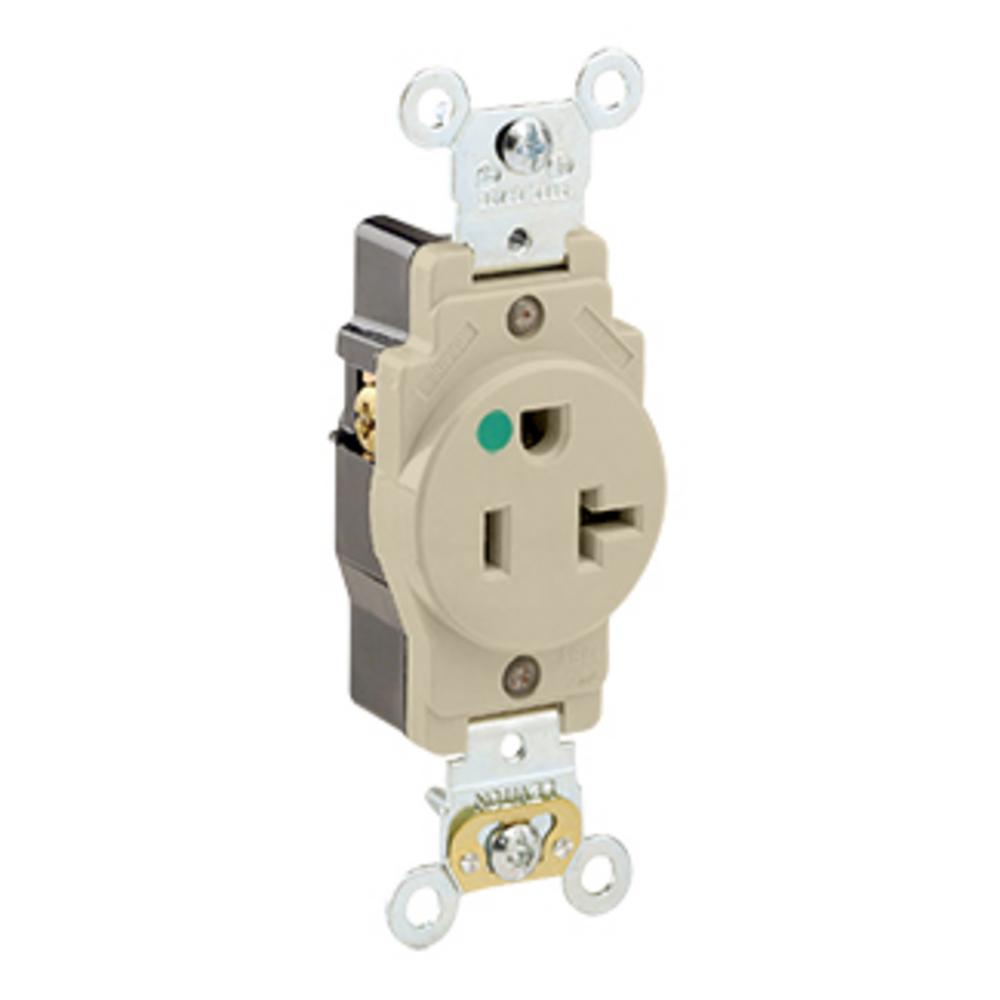

520R HG SINGL RECEP IV by Leviton
Call For Price
- Part Number: 8310-I
- UPC: 00078477264614
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
20 Amp, 125 Volt, Extra Heavy Duty Hospital Grade, Single Receptacle, Straight Blade, Self Grounding, Ivory
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Commercial
Brand Name:
LEVITON
Color:
Ivory
Connection:
Back Wired;Side Wired
Country Of Origin:
MX
Dielectric Strength:
2000 (Min.)
Environmental Conditions:
Flammability (Rated V-2 per UL94)
Material:
Thermoplastic
Mounting:
Box
MsdsURL:
https://www.ideadigitalcontent.com/files/10962/MSDS.pdf
NEMA Rating:
5-20R
Number Of Poles:
2
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
46 H x 1.31 W x 16 D
Spec Sheet:
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498HG (File E13399);RoHS Non-Compliant
Stock Type:
Shelf Stock
Tech Drawing Link:
Temperature Rating:
-40 to +60
Type:
Single Receptacle
UNSPSC:
39121406
Voltage Rating:
125
Weight:
.180 L
Wire Size:
14-10
Manufactured By:
Leviton
