SGG HG DUP 20A-125V by Leviton
Call For Price
- Part Number: 8300-SGG
- UPC: 00078477057209
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

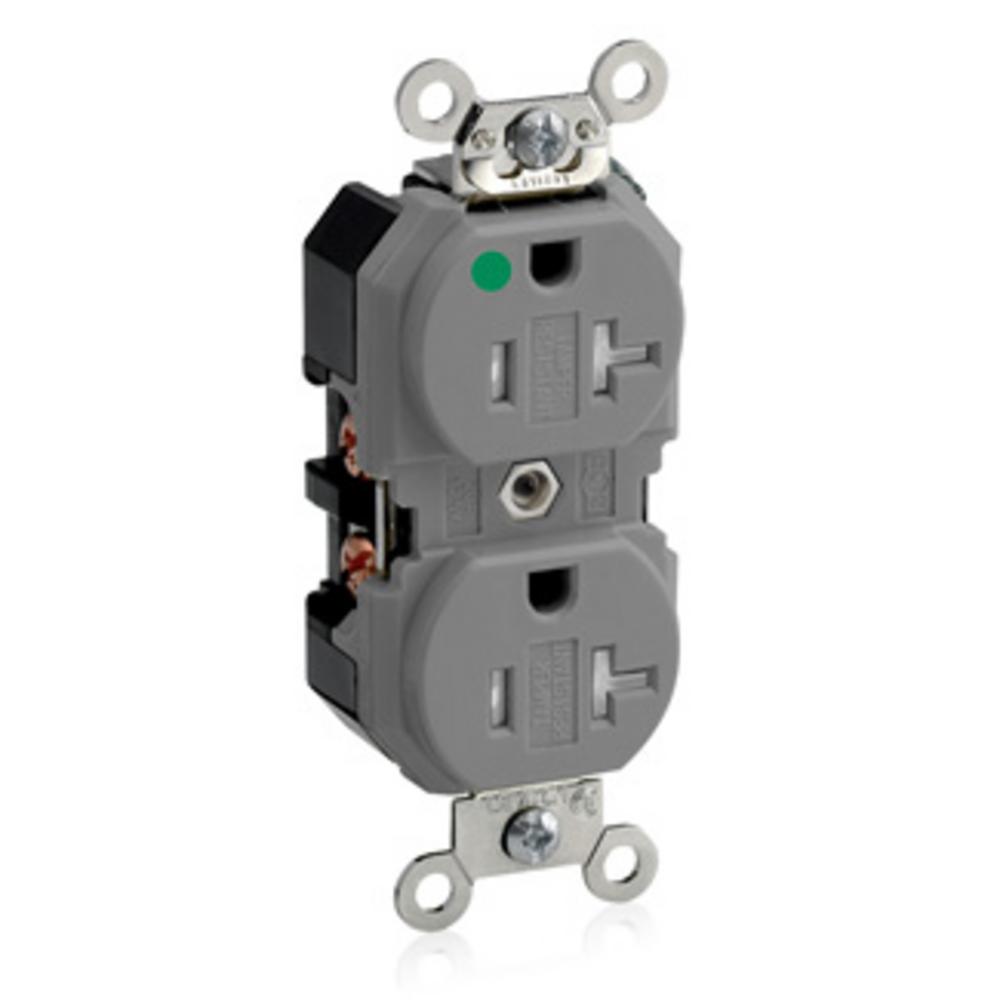

20 Amp, 125 Volt, Extra Heavy Duty Hospital Grade, Duplex Receptacle, Tamper Resistant, Straight Blade, Self Grounding, Gray
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
Hospital
Brand Name:
LEVITON
Brochure:
Color:
Gray
Connection:
Back and Side Wired
Country Of Origin:
MX
Dielectric Strength:
2000 (Min.)
Environmental Conditions:
Flammability (Rated V-2 per UL94)
Material:
Thermoplastic
Mounting:
Wall Box
MsdsURL:
https://www.ideadigitalcontent.com/files/10962/MSDS.pdf
NEMA Rating:
5-20R
Number Of Poles:
2
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
RoHS Compliance:
Contact Manufacturer
Size:
46 H x 1.51 W x 1.23 D
Spec Sheet:
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399)
Stock Type:
Shelf Stock
Tech Drawing Link:
Temperature Rating:
-40 to +60
Type:
Straight Blade;Duplex Outlet
UNSPSC:
39121406
Voltage Rating:
125
Weight:
.260 L
Wire Size:
14-10
Manufactured By:
Leviton
