WH REC DEC DUP HG PIL LITE 2PO3WI15A125V by Leviton
Call For Price
- Part Number: 16262-PLW
- UPC: 00078477109090
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

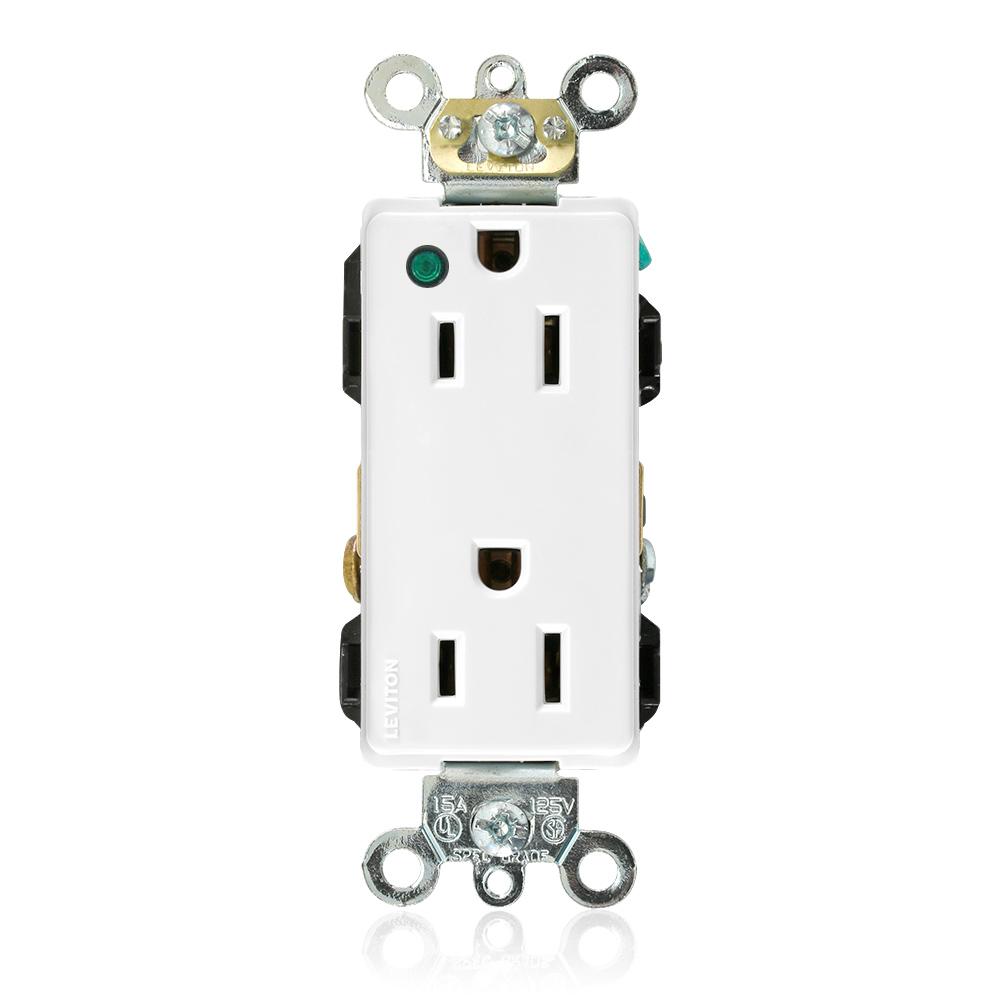

15 Amp, 125 Volt, Decora Plus Duplex Receptacle, Power Indication, Straight Blade, Hospital Grade, Self Grounding, White
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
15
Application:
Commercial
Brand Name:
LEVITON
Color:
White
Connection:
Back and Side Wired
Country Of Origin:
MX
Dielectric Strength:
2000 (Min.)
Environmental Conditions:
Flammability (Rated V-2 per UL94)
Material:
Nylon
Mounting:
Wall Box
MsdsURL:
https://www.ideadigitalcontent.com/files/10962/MSDS.pdf
NEMA Rating:
5-15R
Number Of Poles:
2
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
RoHS Compliance:
Contact Manufacturer
Size:
46 H x 1.52 W x 1.14 D
Spec Sheet:
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498HG (File E13399)
Stock Type:
Shelf Stock
Sub Brand:
Decora Plus
Tech Drawing Link:
Temperature Rating:
-40 to +60
Type:
Straight Blade;Duplex Outlet
UNSPSC:
39121406
Voltage Rating:
125
Weight:
.250 L
Wire Size:
14-10
Manufactured By:
Leviton
