Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 1 by Mersen
Call For Price
- Part Number: A4J110EI
- UPC: 00782001228873
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview

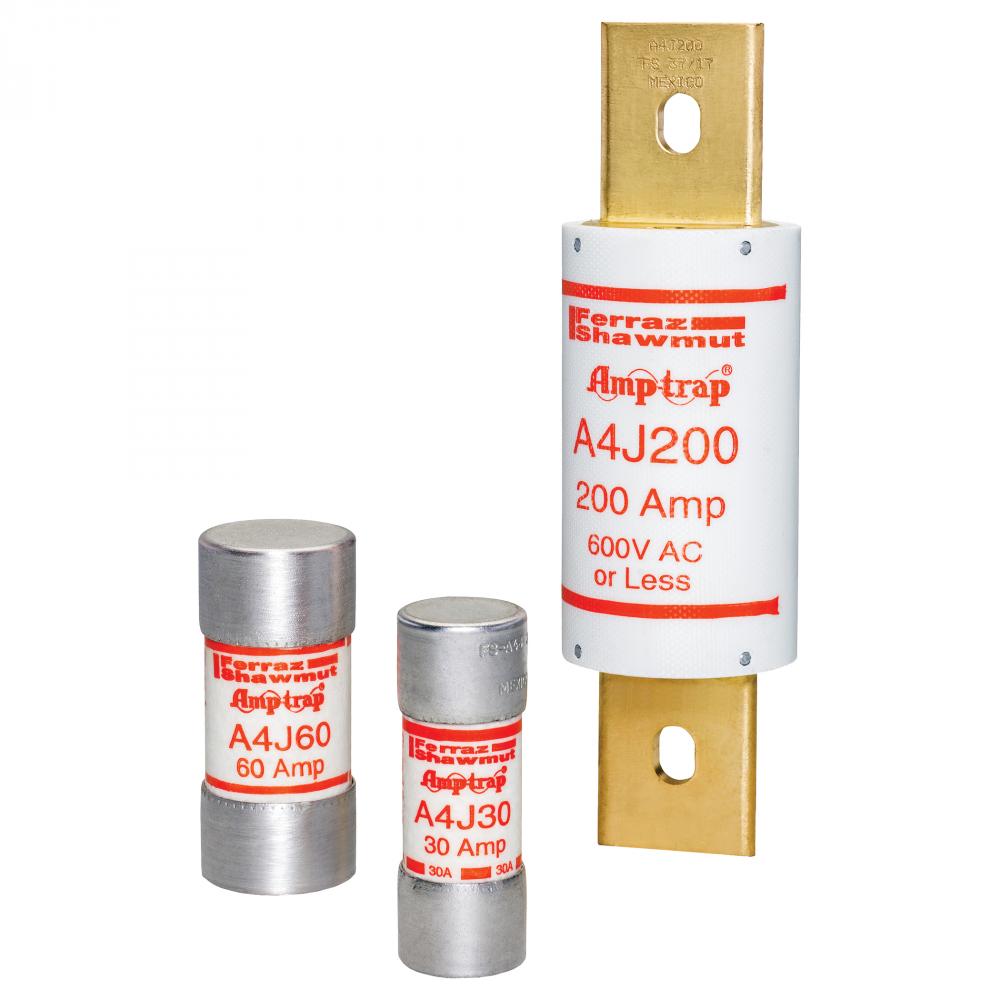

Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 110A Blade EI Indicator Amp-Trap®
Specifications
Details
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Fuses
Amperage Rating:
110
Application:
Capacitors Load centers Panelboards Switchboards Bus duct Feeder circuits Circuit breakers Lighting, heating, and general loads
Brand Name:
Mersen
Class:
Class J
Connection:
Blade
Country Of Origin:
MX
Interrupt Rating:
200
Line Drawing Link:
Mounting:
Clip
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
5.75 x 1.62
Spec Sheet:
Special Features:
High current limitation for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Fiberglass body provides dimensional stability in harsh industrial environments Easy-to-read imprint label for quick recognition and replaceme
Standard:
UL listed to standard 248-8 File E2137 CSA certified to standard C22.2 no. 248.8 DC listed to UL 248 IEC 269-2-1
Stock Type:
Configured on order
Sub Brand:
Amp-Trap®
Type:
Class J
Type Of Indicators:
EI Indicator
UNSPSC:
39121627
Voltage Rating:
600
Weight:
.850 lb
Manufactured By:
Mersen
