Fuse AJT - Class J - Time-delay 600VAC 500VDC 20 by Mersen

Call For Price

Part Number: AJT200EIA
UPC: 00782001288310

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

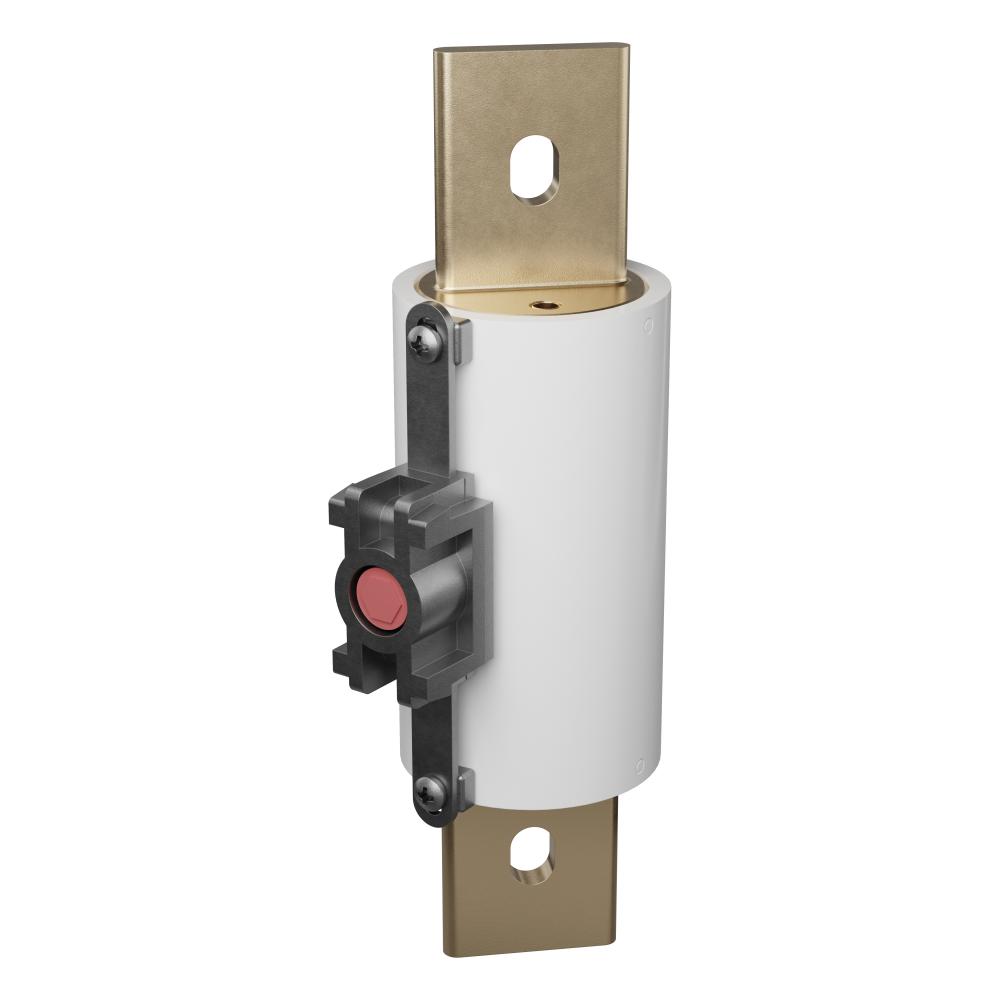

Fuse AJT - Class J - Time-delay 600VAC 500VDC 200A Blade EI-A Indicator Amp-Trap 2000®

Specifications

Details

Electrical Category:

Fuses Relays And Circuit Breakers

Electrical Subcategory:

Fuses

Amperage Rating:

200

Application:

Motor circuits Mains Feeders Branch circuits Lighting, heating & general loads Transformers Control panels Circuit breaker back-up Bus duct Load centers

Brand Name:

Mersen

Class:

Class J

Connection:

Blade

Country Of Origin:

Interrupt Rating:

200

Line Drawing Link:

Line Drawing

Mounting:

Clip or Bolted

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Yes

Size:

5.75 x 1.62

Spec Sheet:

Spec Link

Special Features:

Non-indicating or solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Most current-li

Standard:

AJT (1-600): UL listed to standard 248-8 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.8 IEC 60269-2-1 AJT (70-600) EI: UL listed DC tested to UL standard 248

Stock Type:

Configured on order

Sub Brand:

Amp-Trap 2000®

Type:

Class J

Type Of Indicators:

EI-A Indicator

UNSPSC:

39121604

Voltage Rating:

600

Weight:

1.020 lb

Manufactured By:

Mersen
