Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC by Mersen
Call For Price
- Part Number: TR400R
- UPC: 00782001748159
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

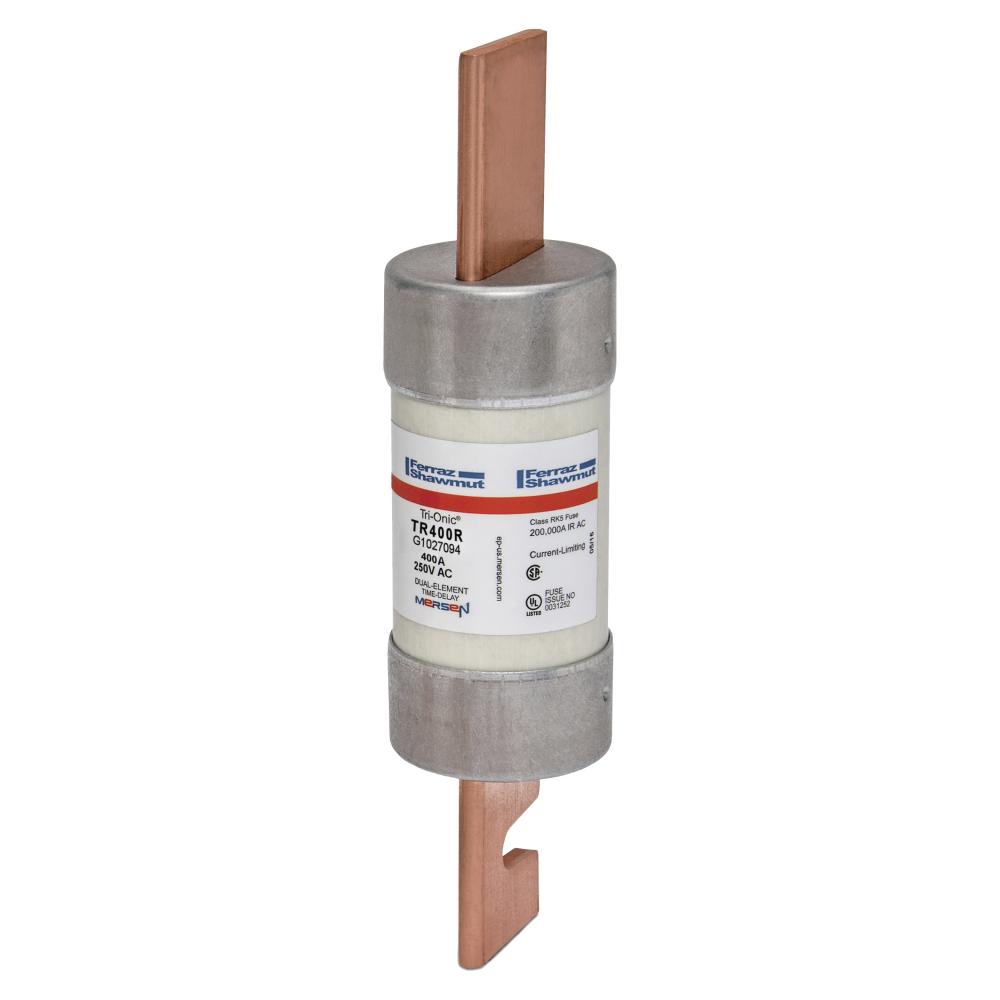

Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 400A Blade Tri-Onic®
Specifications
Details
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Fuses
Amperage Rating:
400
Application:
Motor circuits Mains Feeders Branch circuits Transformers Service entrance equipment General-purpose equipment
Brand Name:
Mersen
Class:
Class RK5
Connection:
Blade
Country Of Origin:
MX
Interrupt Rating:
200
Line Drawing Link:
Mounting:
Clip
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Rohs Link:
Size:
8.63 x 2.06
Spec Sheet:
Special Features:
Time-delay Current-limiting AC & DC rated Optional solid state SmartSpot blown fuse indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prev
Standard:
UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 no. 248.12 DC listed to UL standard 248 TRS only
Stock Type:
Shelf Stock
Sub Brand:
Tri-Onic®
Type:
Class RK5
UNSPSC:
39121604
Voltage Rating:
250
Weight:
1.640 lb
Manufactured By:
Mersen
