SURGE-TRAP PLUGGABLE PV 1000VD by Mersen
Call For Price
- Part Number: STP1000YPVM
- UPC: 00782001419721
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (6)
Product Overview

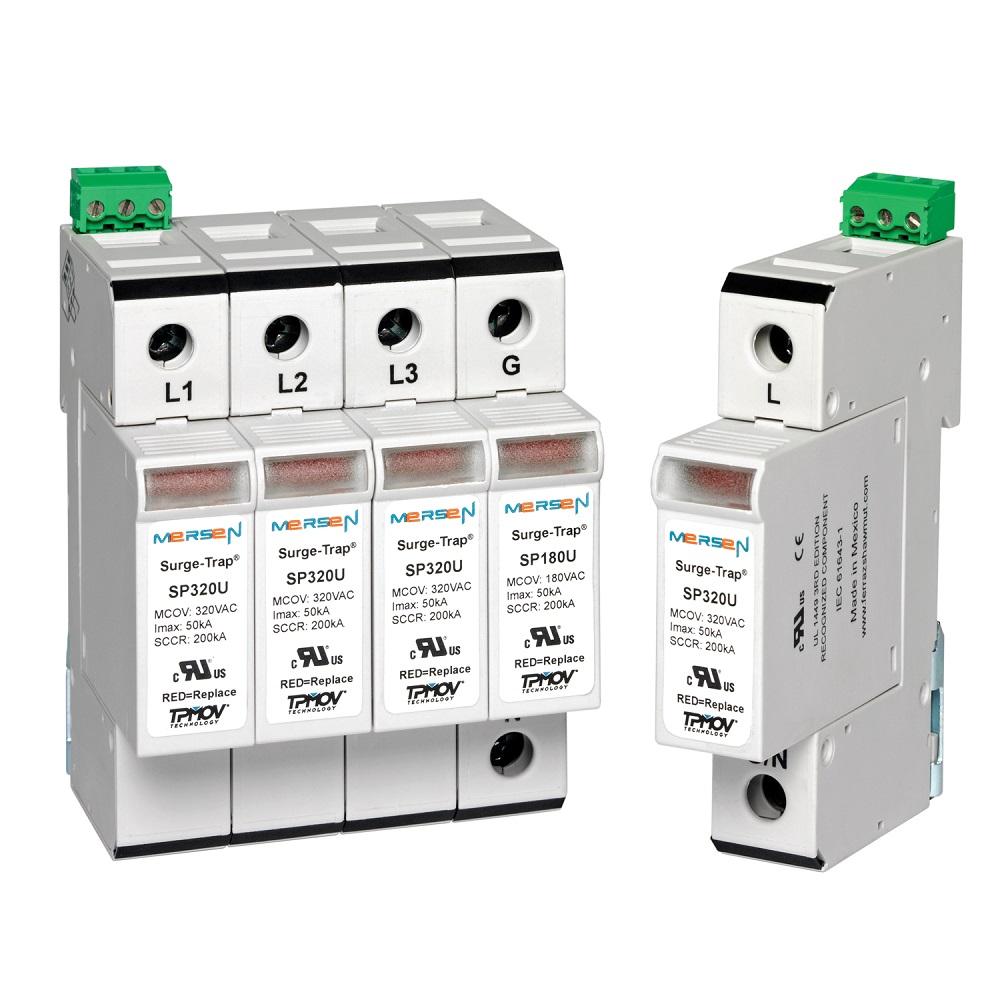

Surge-Trap® Pluggable SPD provides advanced overvoltage protection. Utilizing Mersen's patented TPMOV® design, which does not require fuses, a fuse holder or additional wiring in meeting the UL 1449 Third Edition standards thus providing substantial cost savings and reduced installation times. It also features a visual indicator, easy installation, fail-safe design, mechanical coding and remote monitoring. The Surge-Trap Pluggable SPD base is designed to be mounted on 35mm DIN-rail while plugs are easily replaceable upon failure without touching the base or the hassle of rewiring. 1000 Volts YPV system type .
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Surge And Power Protection
Circuit Protection Devices And Accessories
Application:
AC/DC distribution Power supplies Industrial automation Telecommunications Motor controls and starter systems Programmable logic controller (PLC) applications Power transfer equipment HVAC applications AC drives UPS systems Security sys
Brand Name:
Mersen
Connection:
Box
Country Of Origin:
MX
Lead Time:
30.000 DW
Mounting:
DIN-rail
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Short Circuit Rating:
10
Spec Sheet:
Special Features:
Easy installation or retrofit DIN-rail mountable Fail-safe /self-protected design Remote indicator (optional) Visual indicator IP20 finger-safe design 2 year warranty No additional overcurrent protection devices needed Easy to replace modules
Standard:
UL 1449 Third Edition Approved, File No E210793 Type 1 Component Assembly IEC 61643-1 RoHS compliant ANSI/IEEE C62.41 CE
Sub Brand:
Surge-Trap®
Type:
Surge-Trap® SPD
Type Of Indicators:
Microswitch
UNSPSC:
39121610
Voltage Rating:
1000
Weight:
1.150 L
Manufactured By:
Mersen
