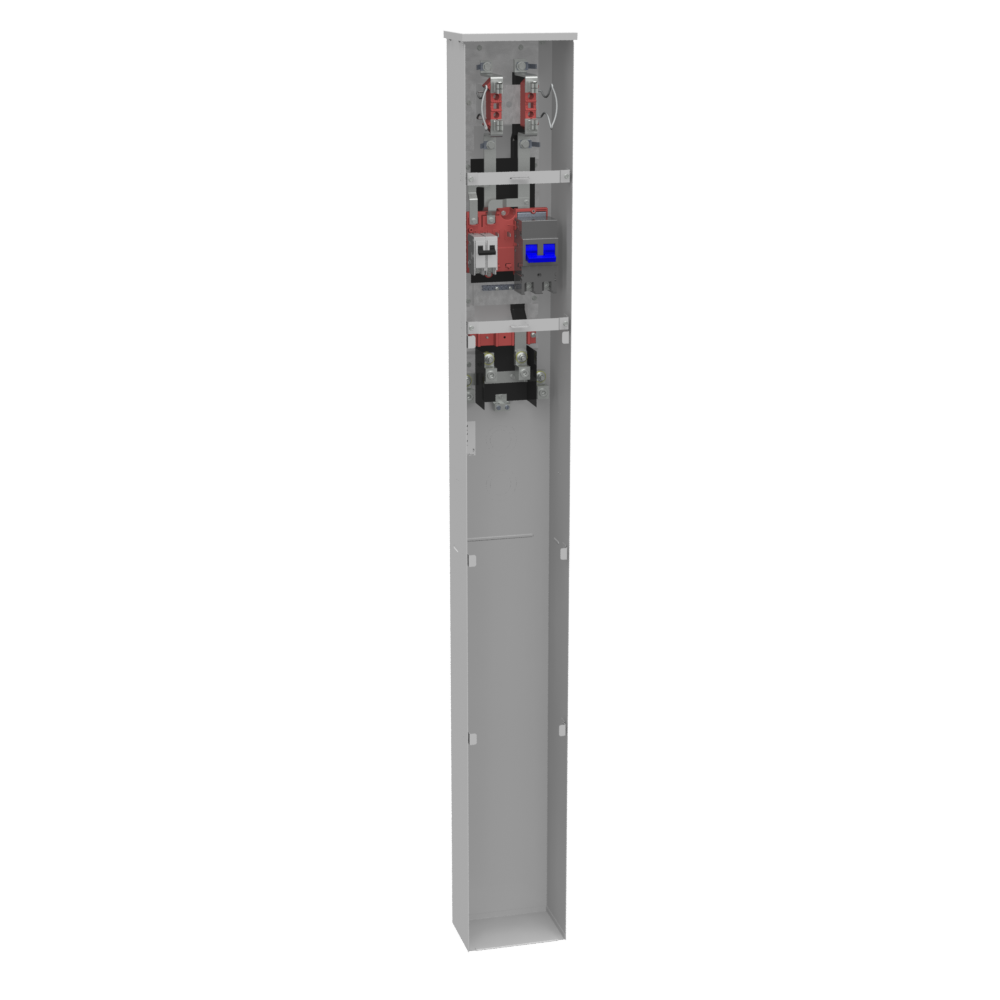

200A 4T RL MTR DB PED 28092 by Milbank
Call For Price
- Part Number: NU8980-O-SF100-KK
- UPC: 00784572280922
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
4 TERM RNGLS PLAINTOP HRN BYPS 1-100 AMP MN BRKR SGL PED DIR BURY SMALL FRAME BRKR
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Distribution and Control Centers
Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main And Load Center
Brand Name:
Milbank
Bypass Type:
Horn Bypass
Cable Entry:
Underground
Country Of Origin:
USA
Cutout Size:
One 100 Ampere Main Breaker
Enclosure:
G90 Galvanized Steel with Powder Coat Finish
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Opening:
Plain Top
Installation Link:
Insulation:
Glass Polyester
Jaw Quantity:
4 Terminal
Line Side Wire Range:
6 AWG - 350 kcmil
Mounting:
Pedestal
Number Of Cutouts:
1
Number of Meter Positions:
1 Position
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1 Phase
RoHS Compliance:
Contact Manufacturer
Size:
6L x 9W x 79H
Spec Sheet:
Standard:
UL Listed;Type 3R
Stock Type:
Shelf Stock
Terminal:
Single Mechanical
Type:
Ringless Meter Socket
UNSPSC:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Warranty Link:
Weight:
65.000 L
