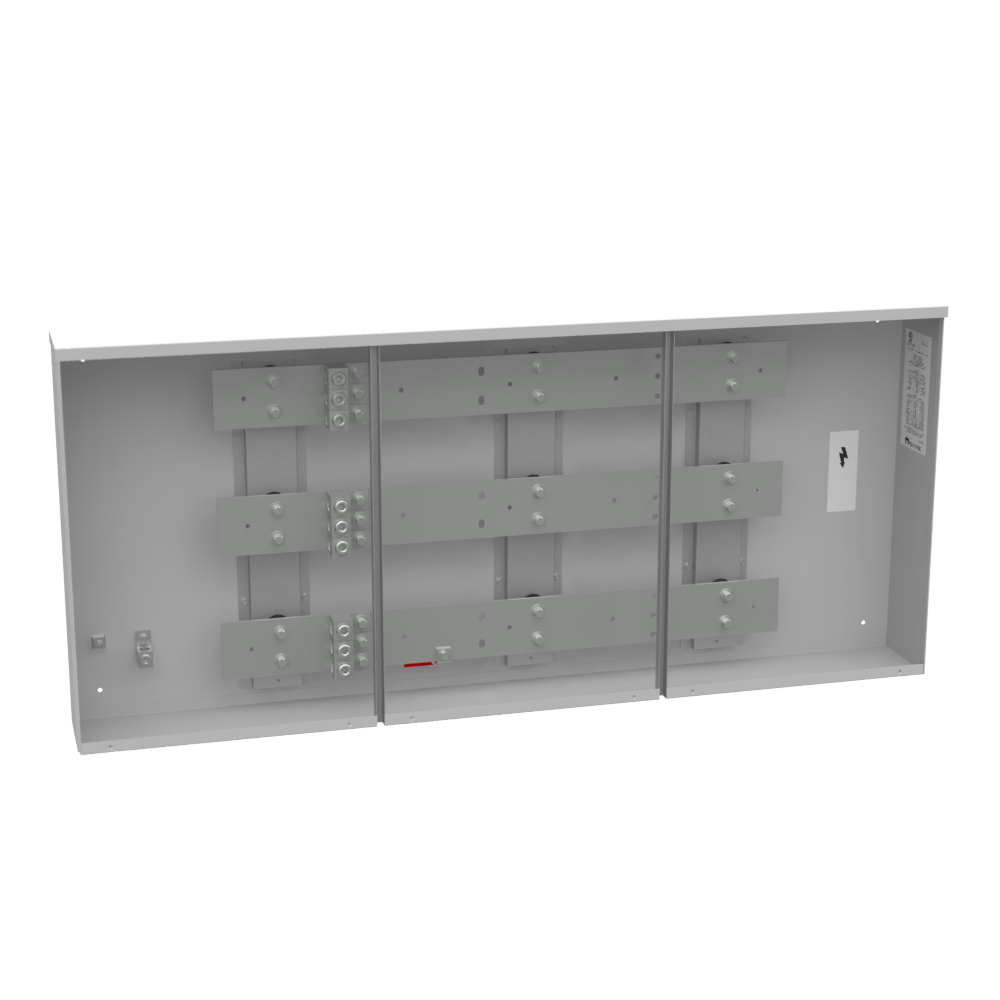

600/800A 1PH 5P BUS 13787 by Milbank
Call For Price
- Part Number: U3415-O
- UPC: 00784572137875
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
800 AMP 1PH 600 VOLT 60IN-26.75IN 6.5IN PNTD STL LIFT OFF SCR FRONTS 3 LUGS PER LND - 4-600 kcmil 65 AIC 5 POS
Specifications
Details
Electrical Category:
Wire And Cable
Electrical Subcategory:
Electrical Wire
Amperage Rating:
Up to 800 Ampere
Application:
Bus Gutter
Brand Name:
Milbank
Color:
ANSI 61 Gray
Conductor Material:
Copper and Aluminum
Connection:
4 AWG to 600 kcmil Line Side Lugs and Load Side Tapped Holes
Construction:
G90 Galvanized Steel
Country Of Origin:
USA
Finish:
Powder Coat Finish
Installation Link:
Insulation Material:
Polypropylene
Jacket Material:
No Jacket Material
Length:
6.5
Number Of Conductors:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
6.5L x 60W x 26.75H
Spec Sheet:
Standard:
UL Listed;Type 3R
Temperature Rating:
No Temperature Rating
Type:
Line to Load Distribution
UNSPSC:
26121541
Voltage Rating:
Up to 600 Volts Alternating Current
Warranty Link:
Weight:
150.000 L
Manufactured By:
Milbank
