Hvy WlHtShrnkTb 6” .400"-.130" 12-8AWG

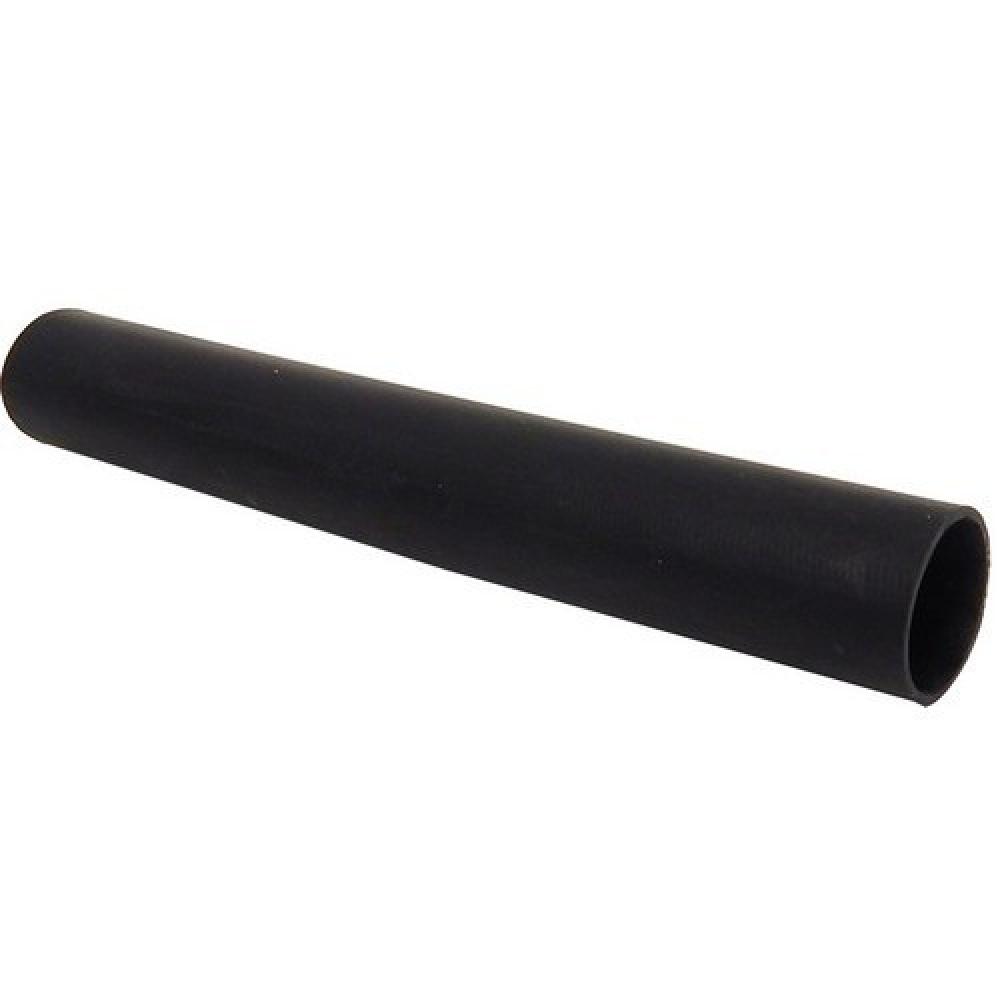

Hvy WlHtShrnkTb 6” .400"-.130" 12-8AWG by Morris

Call For Price
  • Part Number: 68004
  • UPC: 00601986680042
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (11)
Product Overview
Heavy Wall Heat Shrink Tubing Flame Retardant 6"? .400"-.130" 12-8 AWG - Extremely durable and versatile Flame Retardant Shrink Tubing.Heavy Wall Heat Shrink Tubing Flame Retardant 6"?? .400"-.130" 12-8 AWG features include: 3:1 Shrink Ratio allows various shapes amp; contours to be accommodated with one size shrink tube Insulates amp; protects electrical splices amp; terminations where maximum flame retardancy amp; exceptional insulating amp; sealing characteristics are required High impact and abrasion resistance capable of withstanding severe mechanical abuse of U.R.D., submersible and direct burial installations Will not split or rupture during installation, even when overheated Thermoplastic meltable adhesive sealant liner provides complete environmental protection and insulation Flame retardant Meets: UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4, 2.5,MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and NEMA insulation thickness requirements Heat shrink tubing is rated for 1000V, 194deg;F (90deg;C) continuous use Continuous operating temperature: -67deg;F to 230deg;F (-55deg;C to 110deg;C) Shrink temperature: 248deg;F (120deg;C) Black color Below is more info on our Heavy Wall Heat Shrink Tubing Flame Retardant 6"?? .400"-.130" 12-8 AWG
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Country Of Origin:
TWN
Length:
6.0000 IN
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
UNSPSC:
39121409
Weight:
.028 L
Manufactured By:
Morris
