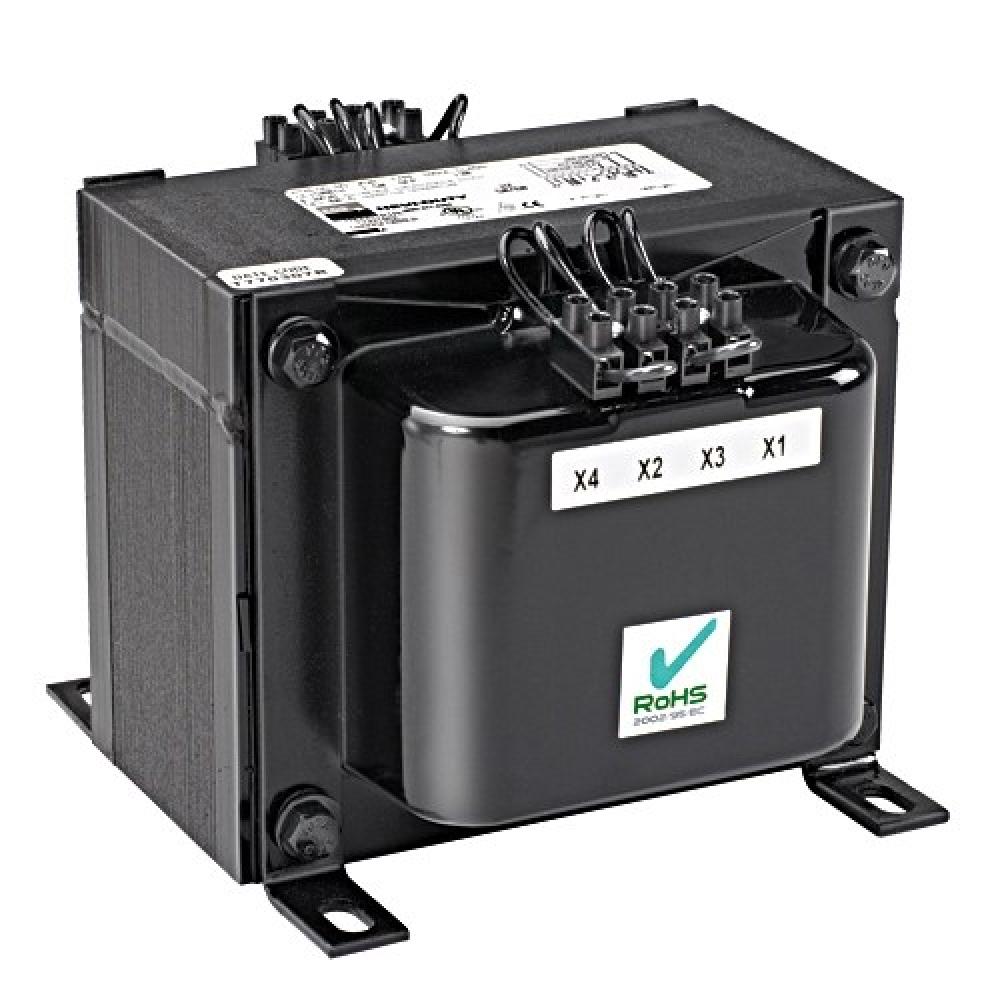

1KVA INTL CE-RATED XFMR TH by SolaHD
Call For Price
- Part Number: CE1000TH
- UPC: 00783472012794
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (9)
Product Overview
Features:130 DEG C Insulation System, Standard:UL (CANADA AND US), CE, IEC, ANSI, Wattage:1000VA, Input Voltage:240/415/480, 230/400/460, 220/380/440V AC, Output Voltage:120/240, 115/230, 110/220V AC, Frequency: 50/60 HZ
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Power Conditioning Equipment
Transformers And Accessories
Application:
Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment.
Brand Name:
SolaHD
Country Of Origin:
US
Enclosure:
NEMA 3R with optional weather shield (WS-30)
Frequency Rating:
60
Height:
5.63
KVA Rating:
1
Length:
22
Mounting:
Wall Mounting Brackets Available
Number Of Phases:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Power Factor:
50
Primary Voltage:
240/415/480 Volt Primary
RoHS Compliance:
Yes
Secondary Voltage:
120/240 Volt Secondary
Spec Sheet:
Special Features:
Primary Amperage 90.3A, Secondary Amperage 90.3A,Stainless Steel Material,220 DEG C Insulation System
Standard:
UL Listed E25872
Stock Type:
Shelf Stock
Temperature Rating:
150 DEG C Rise
Type:
Ventilated Distribution Transformer
UNSPSC:
39121026
Warranty Link:
Wattage:
1000
Weight:
31.950 L
Width:
28
Manufactured By:
SolaHD
