240W 24V DIN S/P 115/230V IN by SolaHD
Call For Price
- Part Number: SDN10-24-100P
- UPC: 00783472153213
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Product Overview

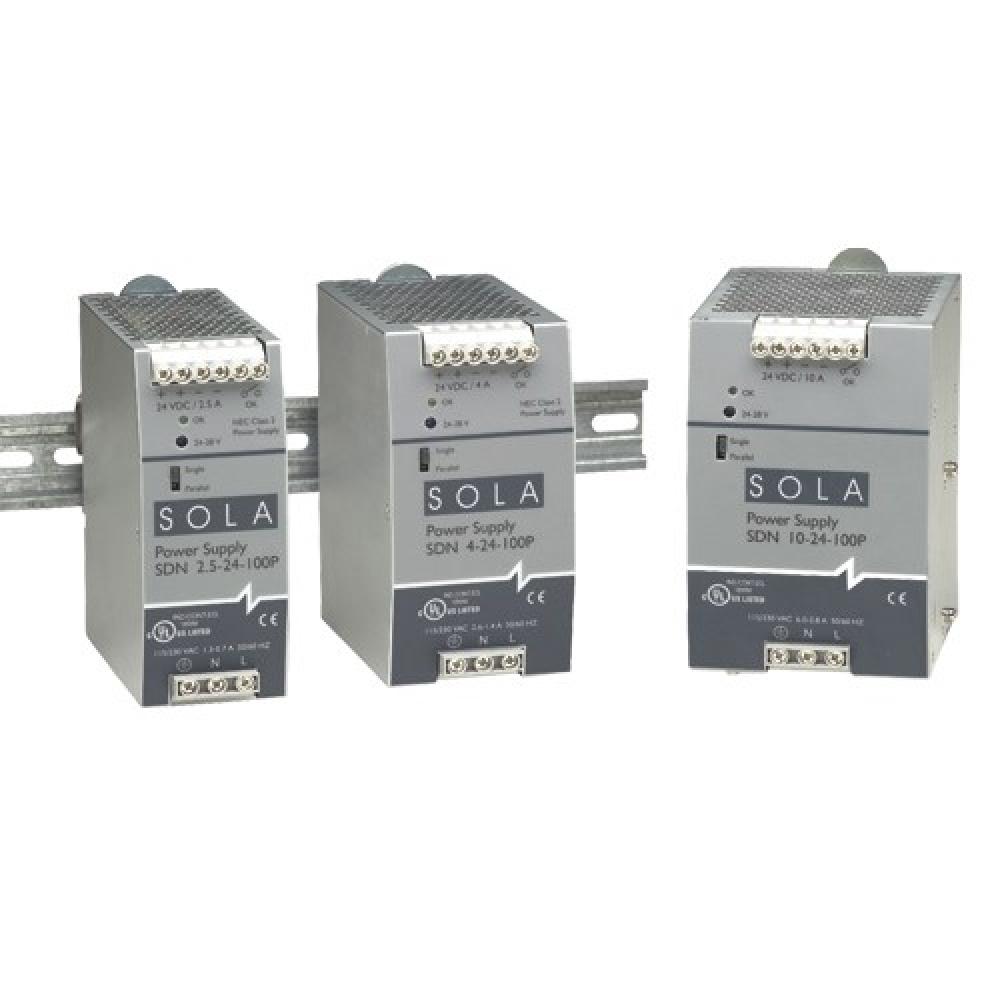

SDN-P Series DIN Rail Power Supply, Nominal Output Current: 10 A (240 W), Nominal Voltage Input: 115/230 Vac, Nominal Voltage Output: 24 Vdc, Frequency 47-63 Hz, Single Phase
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Amperage Rating:
2.2/1.0
Application:
Industrial Machine Control and Process, Conveying Equipment, Material Handling, Packaging Equipment
Brand Name:
SolaHD
Cable Size:
16 to 10 AWG Solid, 16 to 12 AWG Flexible
Country Of Origin:
TW
Efficiency:
88
Enclosure:
Class 1 Zone 2, IP20
Environmental Conditions:
90 RH Humidity Range
Frequency Rating:
47 - 63
Fuse Rating:
Internally Fused
Height:
4.88
Length:
2.56
Material:
Metal Housing
Mounting:
DIN Rail
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
RoHS Compliance:
Yes
Spec Sheet:
Special Features:
Power Factor Correction (per EN61000-3-2), Auto Select 115/230 Vac, 50/60 Hz Input, DC OK Signal, Adjustable Voltage, Parallel Capability standard on all units, -10 DEG C to 60 DEG C operation without derating, Indefinite short circuit, overvoltage and ove
Standard:
UL (CANADA AND US), UL 508, UL 60950, CUL, CSA-C22.2, CE
Stock Type:
Shelf Stock
Type:
SDN-P DIN Rail Series
UNSPSC:
39121004
Voltage Rating:
115/230
Warranty Link:
Wattage:
16.4
Weight:
3.500 L
Width:
4.55
Manufactured By:
SolaHD
