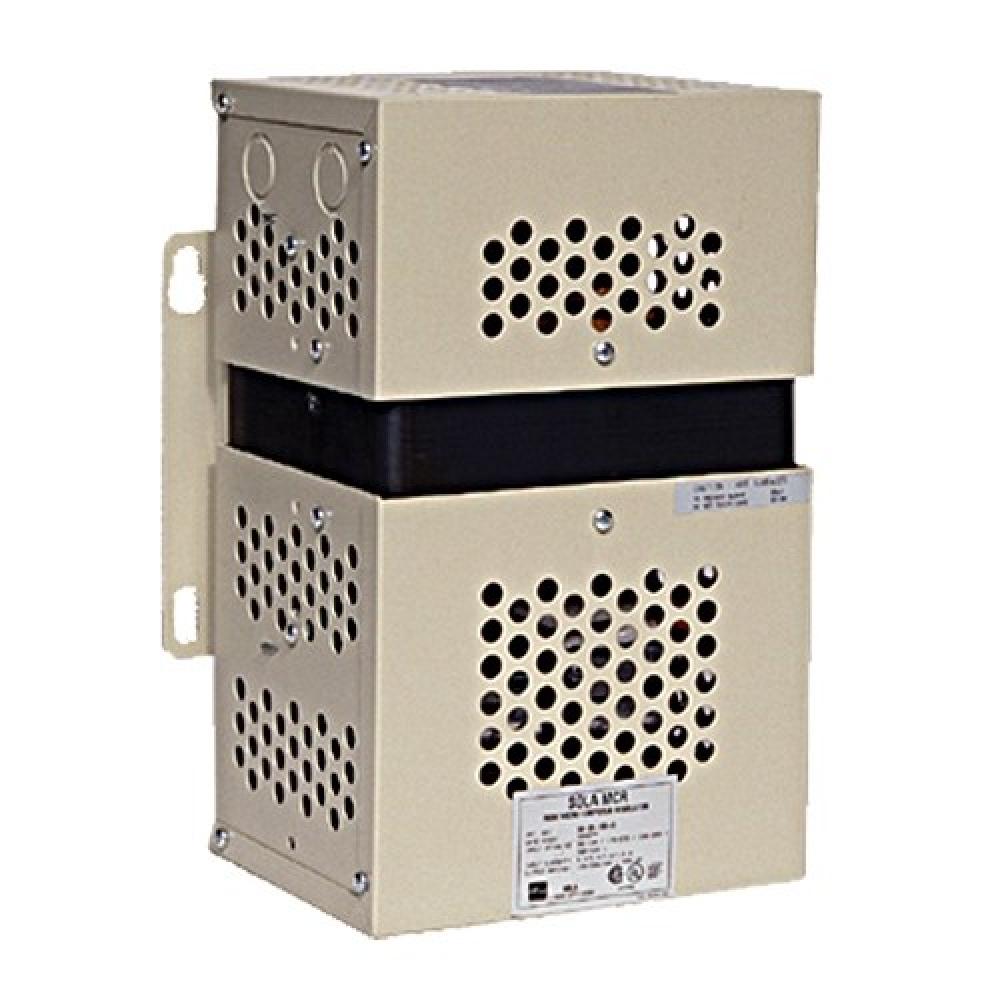

3000VA MCR HARDWIRE REG 600V by SolaHD
Call For Price
- Part Number: 63-32-230-8
- UPC: 00783472136155
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (30)
Product Overview
Features:120 DB Common Mode, 60 DB Transverse Mode Noise Attenuation, Galvanic Isolation, Standard:UL (CANADA AND US) , UL 1012, CSA, ANSI/IEEE C62.41, Wattage:3000VA, Input Voltage:600, Output Voltage: 120/208/240
Specifications
Details
Electrical Category:
Data Networking And Wireless
Electrical Subcategory:
Telephony Equipment
Application:
Industrial Automation and Control Equipment Power PLCs, Machine Tools, Robotics, Semiconductor Fabrication Equipment
Brand Name:
SolaHD
Country Of Origin:
US
Frequency Rating:
60
Height:
18
Input:
600
Length:
10
Mounting:
Bracket
MsdsURL:
http://www.ideadigitalcontent.com/files/11375/MSDS_SOLAHD_23_63.pdf
Noise Level:
35 to 65
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Output Power:
120, 208, 240
RoHS Compliance:
Yes
Spec Sheet:
Special Features:
+/- 3% output voltage regulation, Surge protection tested to ANSI/IEEE C62.41. Class A & B waveform, Harmonic filtering, Galvanic isolation, Noise attenuation 120 dB common mode/60 dB transverse mode
Standard:
cULus Listed: (500VA-3kVA Units) UL 1012, CSA C22.2 No. 66; CSA Certified (5kVA-15kVA Units) CSA C22.2 No. 66, RoHS Compliant
Style:
1
Type:
MCR Hardwired Series Power Line Conditioning with Voltage Regulation
UNSPSC:
43222901
Warranty Link:
Weight:
138.000 L
Width:
13
Manufactured By:
SolaHD
